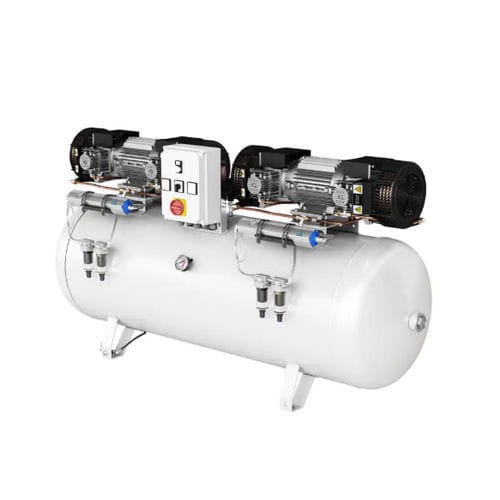

Laboratory air compressor CLINIC DRY 12.500 H dentalfor milling machinespiston
Add to favorites
Compare this product
Characteristics
- Applications
- dental, laboratory, for milling machines
- Technology
- piston
- Configuration
- stationary
- Number of dental workstations
- 10-workstation
- Options and accessories
- oil-free, dry, silent, with air dryer
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Flow
400 l/min, 530 l/min
(105.67 us gal/min, 140.01 us gal/min)- Power
6 kW
(8.16 hp)- Weight
346 kg
(762.8 lb)- Noise level
78 dB
- Length
2,040 mm
(80.3 in)- Width
700 mm
(27.6 in)- Height
980 mm
(38.6 in)
Description
Condensate Treatment - Epoxy (internal/external)
Particulate Treatment - 0,3 µm
Air purity class (ISO 8573-1) - 1-2-0
Voltage (V) - 400,00
Frequency (Hz) - 50,00
Nominal rating (kW) - 6,00
Nominal rating (HP) - 8,00
Rotation speed (rpm) - 1.400,00
Starting current (A) - 13,00
Number of cylinders - 8
FAD (L/min) - 680,00
Air Delivery (L/min @5 bar) - 530,00
Air Delivery (L/min @8 bar) - 400,00
Maximum pressure (bar) - 10,00
Noise level (3,00m @ 5,00 bar (dB(A)) - 78,00
Duty cycle - S1 100%
Tank Coating - Epoxy (internal/external)
Tank capacity (lt) - 500,00
First Maintenance (hours) - 3000
Hour Meter - Included
Tank Automatic Drain Valve - Optional
VIDEO
Catalogs
Catalogue 2021
48 Pages
