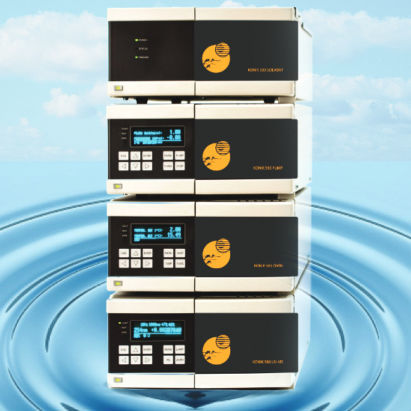

HPLC chromatography system KONIK 580

modular

The new KONIK 580 HPLC is the fifth generation of low pressure gradient forming systems after the pioneer KONIK 500 launched in 1985. Robustness, compactness, modularity, multidimensional HPLC+GC options and upgradability with attractive price/specifications are the key features of this laboratory workhorse. A wide range of detectors, column ovens, autosamplers, derivatization (pre and post column) and customized multifraction collection options with special valving systems are available on a “turn key” bases. Tower design and small foot print of 30×50 cm takes little bench space. Robust, flexible and reliable second to none, Fast/high pressure HPLC , Low pressure 4 solvents gradient formation, or high pressure binary gradients. An upper pressure limit of 60 MPa (600 bar or 8.700 psi), Flow range from 0,01 to 10 ml suitable for micro and conventional HPLC Wide range of columns particle sizes (1,5, 3, 5 and 10 microns) including new low backpressure hollow packings, Isocratic, and preparative versions (40 Mpa and 0,1 to 50 ml/min) , Easy exchange of the pump head, Lower pulsation and lowest noise level, Optimum accuracy and reproducibility of gradient formation, Compact oven for column temperature control and better reproducibility The 580 oven is now housed in the same modular chassis of the 580 series. Four solvent, low pressure mixing gradient formation for utmost flexibility and reproducibility Built in solvent degassing. Column and detector switching options, Unique column back flushing option to increase productivity,
