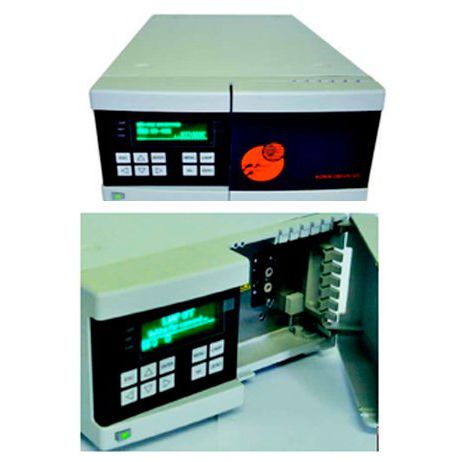

HPLC chromatography detector KONIK DAD 580

UV/VIS

KONIK HPLC UV-Vis 580: The 580 UV-Vis covers the range 190 to 800 nm continuously with spectral band width of 6nm. Has high sensitivity and low noise of ± 3•10-6 AU and drift. Several detector flow cells are available, easily interchangeable, for analytical, semi-preparative or flash chromatography. The 580 UV-Vis is controlled by the KONIKROM Data System. The 580 UV-Vis is fitted with one high intensity long life Deuterium discharge lamp for the UV range and Tungsten lamps for the visible region. Two, Reference and Sample, measuring channels allow easy detector diagnostics as well as registration of operational hours. Wavelength Calibration to +/- 1 nm is automatically performed every time the lamp is switched on. Digital andanalogue outputs are included. KONIK HPLC DAD 580: The 580 UV-Vis Diode Array Detector is designed to facilitate full spectrum (190 to 840 nm) or simultaneous four wavelength measurements. Control of peak purity is performed by an optional KONIKROM module. Lamp life control, calibration, etc is similar to the 580 UV-Vis. KONIK 580 RI: Is used for detection of null or low UV absorption compounds such as sugars, polymers, … in isocratic runs. It is rather universal but sensitivity is somewhat limited compared to other detectors. The 580 RI has low drift, noise, accurate flow control and fast equilibration times for optimal performance.
