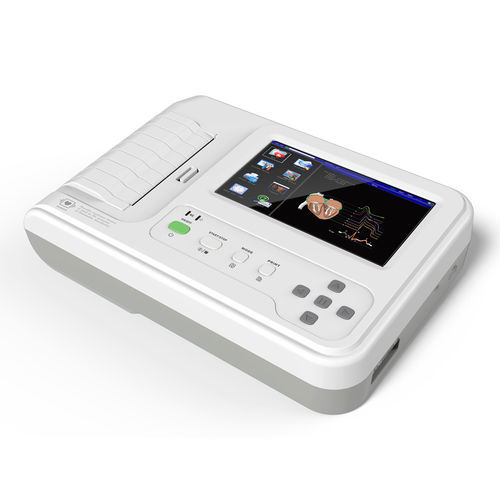

Resting electrocardiograph 600G

3-channel6-channeldigital

- 12 leads simultaneous display - Digital isolation technology and signal processing solution, digital filter - Patient management, name, age and id, detail analysis report - Built-in lithium rechargeable battery - Thermal printing system provides more than 10 printing modes - Can print 90 minutes and print out 150 ECG continually - ECG-Sync software, USB connection to PC and built-in memory can store more than 1000 cases - Auto-measurement, auto-analysis and auto-interpretation USB connection allows real-time transmission to PC, remote data analysis and diagnosis, management and printing through the PC. Technical Specifications ECG instrument Input • Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part • Lead Standard 12 leads • Input way: Floating and defibrillation protection • Patient leak current: 3.2s • CMRR: >60dB, >100dB(Add filter) • Enduring polarization voltage: ±500mV • Noise level: <15µVp-p Dispose Wave Data • EMG interference filter: 25Hz/35Hz (-3dB) • AC filter 50Hz/60Hz (-20dB) Waveform output • Recording way: Thermal printing system (32spots/mm) • Recording paper: 110mm(W)×20m(L) • Sensitivity: 2.5, 5, 10, 20, 40 mm/mV • Paper speed: - Auto-record: 25 mm/s, 50 mm/s - Rhythm record: 25 mm/s, 50 mm/s - Manual-record: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s Power supply • AC: 110-220V, 50/60 Hz • DC: Lithium battery 7.4V, 3500 mAh Fuse • 2 pcs Ø5×20mm AC time lag; T250mA/250V(Power Supply:220V) Form • Size 315 x 215 x 77 mm • Net Weight 1.7 kg
