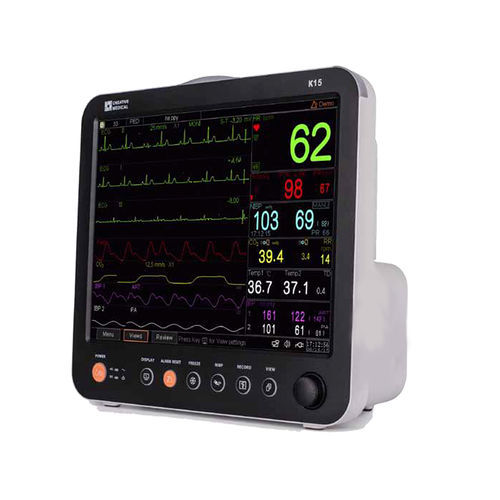

Compact multi-parameter monitor K15

bedsideECGRESP

Multi-functional patient monitors for monitoring the vital physiological signs of adult, pediatric and neonate patients. - ergonomic design with intuitive user interface - USB socket for data transfer and software upgrade - 9 traces on-screen waveforms - Windows style display view, easy to operate - visual and audible alarm for physiological and technical alarms - large capacity storage - suitable for use with original Nellcor sensors - protection against defibrillator discharge, resistance against the interference from electro-surgical unit; Cardiac pacemaker pulse detection and inhibition. Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU. PC software GB, IT, ES. Compatible with Windows XP, 7, 8,10, 11. Technical Specifications ECG Input dynamic range: ±(0.5~5 mVp) Differential input impedance: =10 MO Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operation) CMRR: =90 dB (Diagnostic) / =105 dB (Monitoring & Operation) Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater Pacemaker pulse detection and rejection function RESP Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater TEMP Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C NIBP Technique: Oscillometric method Typical measurement time: <30 seconds (adult cuff) NIBP measuring range: SYS: 40~275 mmHg (Adult) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonate) NIBP measuring range: DIA: 10~210 mmHg (Adult) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonate) NIBP measuring range: MAP: 20~230 mmHg (Adult) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonate)
