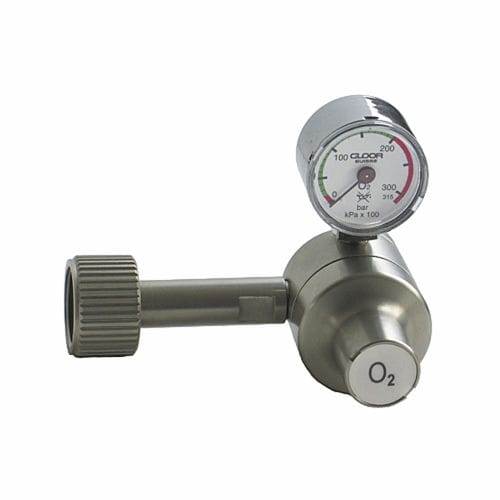

Oxygen pressure regulator PM0124E

airCO2nitrous oxide

suitable for all applications which require very stable outlet pressure under high flow rates and simultaneously small design size despite its single-stage construction the integrated compensation provides constant outlet pressure also with falling cylinder pressure very compact single-stage construction with lateral inlet connection mainly intended for the supply of medical devices in clinics The area of application of the medical pressure reducing valve HP stabilo mini is anywhere, where a preset working pressure is required with both high pressure stability and small construction. Due to the in-built pressure compensation the HP stabilo mini provides very stable working pressure while the gas cylinder is being emptied despite the single-stage construction. The HP stabilo mini has a gauge for indication of the cylinder pressure (and for the version with adjustable pressure also a working pressure gauge), and as well a pressure relief valve. The outlet (version with adjustable working pressure), resp. the two outlets (version with preset pressure) can be equipped with self-closing outlets, NIST housings or quick couplings so that for example tubes can be connected to supply medical devices. The HP stabilo mini corresponds to the norm EN ISO 10524-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Annex IX, class IIb.
