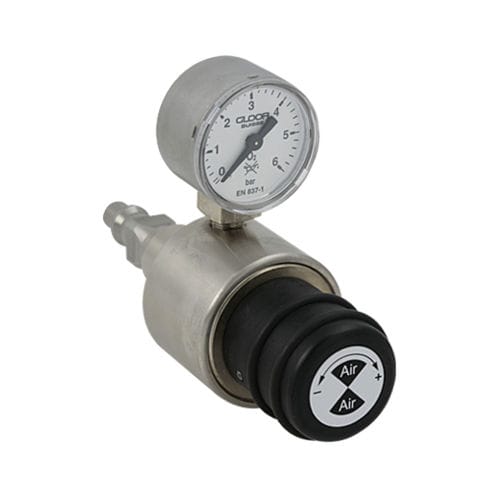

Oxygen pressure regulator PM0107E
airnitrous oxidehelium

oxygen pressure regulator
oxygen pressure regulator
Add to favorites
Compare this product


Characteristics

Fluid type
oxygen, air, CO2, nitrous oxide, helium
Applications
medical
Number of stages
single-stage, second stage
Connection type
plug-in type, quick-connect, rail-mounted
Features
adjustable-flow, low-pressure
Other characteristics
with flow selector
Inlet pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Output pressure

Min.: 0 bar
(0 psi)

Max.: 5 bar
(72.5 psi)

Height

97 mm
(3.8 in)

Weight

720 g
(25.4 oz)

Width

47 mm
(1.9 in)

Depth

128 mm
(5 in)

Description

For the pressure regulation of medical gas from a central gas supply Also available with fixed working pressure For the direct connection of up to 3 consumers Can also be used as a second stage in combination with a cylinder pressure reducing valve Mainly intended for the use in clinics and in emergency medicine The reduc LP take-off regulator is used for the pressure regulation of medical gas from a central gas supply system. The reduc LP consists of a pressure reducing valve and a country-specific probe or NIST connection that is directly coupled or screwed into the extraction socket. The reduc LP offers the possibility of connecting up to 3 consumers, or to use one of the outlets as a relief valve. The desired working pressure can be set using the regulating handle on the pressure reducing valve. Also available on request with a preset working pressure. As an option, the reduc LP is also available in a dual version and/or mounted on a clamping rail bracket (with medical hose and the corresponding probe). The reduc LP is certified in accordance to EN ISO 10524-4. CE marking according to the Guideline for Medical Products 93/42/EEC.
