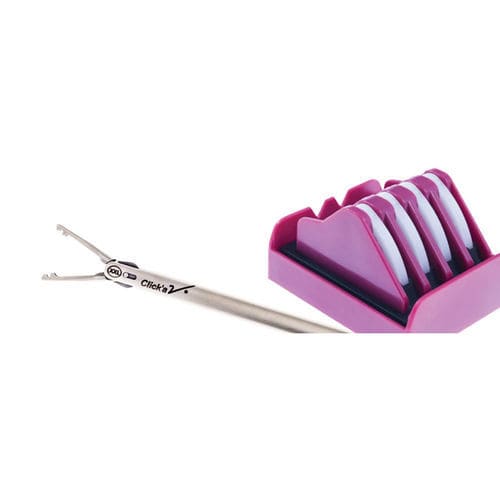

Vascular surgical clip XXL Click’aV Plus™

laparoscopic

Product overview
All the unique features of Click’aV Plus™ — second generation non-absorbable clips — are available in an XXL size designed to close very thick tissues that other clips cannot effectively secure.

Safe and minimally invasive solution
Enlarged teeth provide transverse and longitudinal stability on tissue. The reinforced clip structure maintains dimensional stability and stays closed on the thickest structures. With Click’aV Plus™ XXL, surgeons can extend economical advantages for procedures on extremely thick tissues by substituting endostaplers or harmonic scalpels with a safe, cost-effective technique.

Availability of both endoscopic and open surgery appliers allows Click’aV Plus™ XXL clips to be used across a wide range of procedures. Endoapplier and clip design are optimized to pass through a 10 mm access port, an advantage compared with the 12 or 15 mm required for endostaplers.

Key features

• Closes structures between 10 mm and 22 mm through a 10 mm trocar
• Unlimited hold-on time
• 2, 3 or 4 clips per cartridge
• Robust clip design with enlarged teeth and reinforced structure
• Low interference with CT scanning
• Radiolucent on X‑rays
• MRI compatible
• Self-leading lock mechanism
• Living hinge
• Adhesive backing on the cartridge
• Secure clip retention in the applier and on tissue
• Color-coded cartridges and appliers for easy identification
• Compatible with XXL open and endo appliers

Intended for

• Large vessels under increased pressure
• Sites with difficult access or reduced visibility
• Locations where manipulation increases the risk of mechanical clip displacement

Technical specifications

• Closure range: 10–22 mm
• Access port: optimized for passage through a 10 mm trocar (advantage vs 12/15 mm endostaplers)
• Clip cartridges: available with 2, 3 or 4 clips per cartridge
• Hold time: unlimited
• Design features: enlarged teeth, reinforced structure for dimensional stability, robust clip geometry, self-leading lock, living hinge
• Imaging compatibility: radiolucent on X‑rays, low interference with CT, MRI compatible
• Cartridge features: adhesive backing, color-coded cartridges and appliers
• Clinical use: designed for extremely thick tissues as an alternative to endostaplers or harmonic scalpel; suitable for large vessels and challenging access locations
