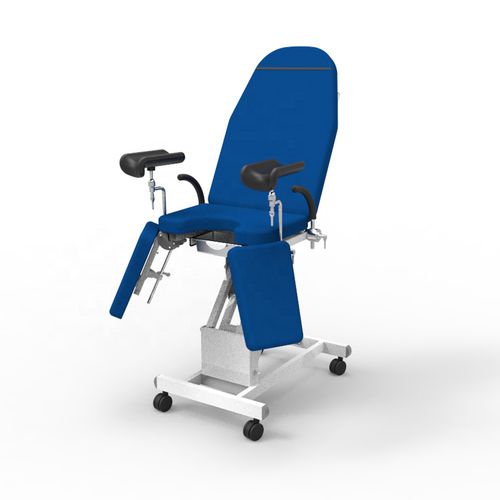

Gynecological examination table DP-YF01

electricheight-adjustablewith adjustable backrest

Description
The DongPin DP-YF01 electric gynecological examination table is designed for clinical gynecological, liver and intestinal examinations. It features quiet medical castors and adjustable sections to support routine examinations and procedures.

Overview
DongPin offers a range of examination chairs and tables tailored to clinical requirements. The DP-YF01 is a compact, electrically adjustable gynecological table suitable for clinics and outpatient facilities requiring precise position control and easy patient access.

Product information
Brand: DongPin
Product origin: China
Delivery time: 30-40 days
Supply capacity: 1000 pcs
Product model: DP-YF01

Standard Specification

• Two electric motors: independent control for overall lift and seat inclination. Seat height: 58 cm–85 cm; seat tilt: -5° to +15°.
• Backrest adjustable via two gas levers; tilt range 0°–+68°.
• Manual foot support with sliding mechanism to adjust height, fore/aft position, direction and angle of footrest.
• Leg section designed for convenient clinical access during examinations.
• Stainless steel extendable square plate located under the seat for support and durability.
• Rear bracket rod for towels or disposable paper rolls.
• Quick-adjust armrests: height, tilt and direction adjustable and lockable to ensure comfortable arm positioning for donor or patient.
• 3-inch medical universal wheels with brakes: low-noise, stable and safe movement.
• Leg height adjustment range: 0°–66°.

Optional section

• Adjustable backrest and footrest options.
• Back and leg sections optionally adjustable via gas spring mechanism to achieve continuous horizontal lying position.

Dimensions
Product length: 165 cm
Backrest length: 85 cm
Seat section length: 40 cm
Upholstery width: 55 cm
Leg length: 40 cm
N.W.: 70 KG
G.W.: 80 KG

Technical specifications

• Model: DP-YF01
• Brand: DongPin
• 2 electric motors (lift and seat inclination)
• Seat height: 58 cm – 85 cm
• Seat inclination: -5° to +15°
• Back tilt: 0° to +68° (gas levers)
• Foot support: manual slider for height and front/rear position; direction and angle adjustable
• Leg height adjustment: 0°–66°
• Stainless steel extendable square plate under seat
• Bracket rod on back for towels/paper towels
• Quickly adjustable and lockable armrests (height, tilt, direction)
• 3-inch medical universal wheels with brakes
• Dimensions: length 165 cm; backrest 85 cm; seat section 40 cm; upholstery width 55 cm; leg length 40 cm
• Net weight: 70 KG; Gross weight: 80 KG
• Origin: China; Delivery time: 30–40 days; Supply capacity: 1000 pcs
