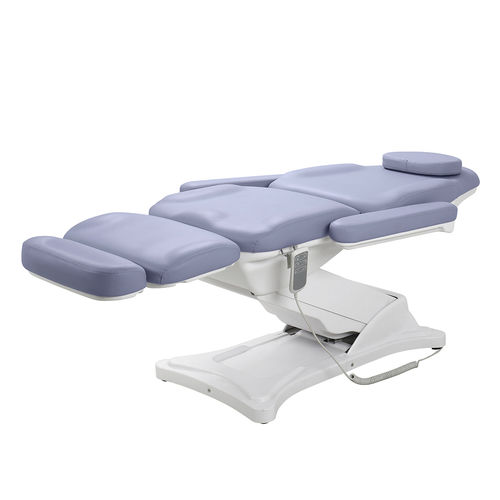

Physiotherapy treatment table DP-8194

adultelectricheight-adjustable

Overview
DongPin DP-8194 is a medical physiotherapy/treatment bed available in electric and non-electric versions. Electric models use low-noise motors for height, backrest and leg adjustments. Non-electric variants are designed for straightforward manual operation, allowing intuitive use in clinical environments.

Summary

• Size: 58 × 58–81 × 180 cm (width × height range × length)
• Motor warranty: 5 years (some listings indicate 3 years for electric bed motors)

Standard

• Equipped with 3 motors; CE certified
• Motorized control of height, backrest tilt and leg tilt via hand control
• Leg extension by manual adjustment
• Adjustable and movable armrests
• Product weight: 150 kg

Dimension

• Height adjustable: 58–81 cm
• Bed width: 58 cm
• Full length: 180 cm
• Backrest tilt: 0–76°
• Leg tilt: 0–90°
• Handrail rotation: 0–180°
• Leg extension: 0–15 cm (manual)

Other additional options

• Foot control available
• Towel rail available
• Side control available
• Optional upholstery colors

Technical specifications

• Brand: DongPin
• Model: DP-8194
• Product type: Medical physiotherapy / treatment bed
• Motors: 3 (electric functions for height, backrest and leg control)
• Certifications: CE
• Height range: 58–81 cm
• Width: 58 cm
• Length: 180 cm
• Backrest tilt: 0–76°
• Leg tilt: 0–90°
• Handrail rotation: 0–180°
• Leg extension: 0–15 cm (manual)
• Product weight: 150 kg
• Available options: foot control, towel rail, side control, optional upholstery colors
