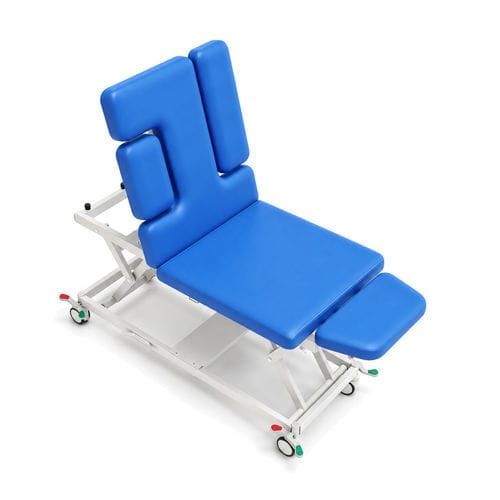

Ultrasound imaging examination table KFM-C415

adultelectricheight-adjustable

Product Overview
The KFM-C415 electric ultrasound examination table provides a 45–85 cm height adjustment, adjustable backrest and leg sections, Trendelenburg and reverse Trendelenburg tilts, a manually retractable right-side imaging window and an adjustable left-side panel for ultrasound access. It features 8 cm high-resilience foam padding, a rechargeable battery system and an emergency stop for clinical environments.

Imaging Access and Adjustments

• Right-side imaging window: manually retractable; adjustment range 0–38 cm
• Left-side panel: manual adjustment 0°–75°
• Backrest / head section: 0°–75°
• Leg section: 0°–80°
• Trendelenburg / Reverse Trendelenburg: 0°–17°

Warranty

• Hardware warranty: 3 years
• Electrical components warranty: 2 years

Features / Technical specifications

• Model: KFM-C415
• Height adjustment: 45–85 cm (17.7–33.5 in)
• Backrest / Head Section Adjustment: 0–75°
• Leg Section Adjustment: 0–80°
• Trendelenburg Tilt: 0–17°
• Reverse Trendelenburg Tilt: 0–17°
• Left-Side Panel Adjustment: Manual, 0–75°
• Right-Side Imaging Window: Manually retractable; adjustment range: 0–38 cm
• Padding Thickness: 8 cm (high-resilience foam)
• Support Board Thickness: 15 mm
• Upholstery: Flame-retardant upholstery
• Upholstery Flammability Standard: BS 5852*
• Upholstery Properties: Stain-, mildew- and abrasion-resistant
• Caster Diameter: 100 mm
• Battery System: Rechargeable battery system
• Emergency Stop: Included
• Packing Dimensions: 187 × 80 × 49 cm
• Packing Volume: Approximately 0.73 m³
