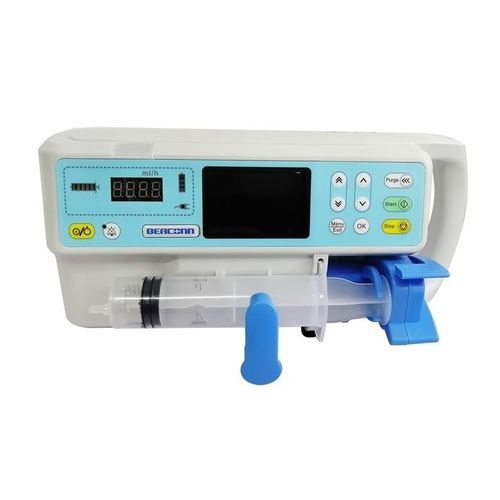

Anesthesia syringe pump HY-900B

1-waypediatricwireless

Product overview
HY-900B syringe pump developed for clinical infusion and precise drug delivery. Supports standard syringes from 5 ml to 50/60 ml and offers multiple infusion modes for varied therapeutic protocols.

Key features

• Compact design with intuitive LED/LCD dual display
• Dual CPU system for redundant control and improved reliability
• Multiple operation modes: Flow rate, Time/Volume, Drug/Weight (Dosage/Weight), BOLUS
• Direct dynamic pressure sensor with graphical pressure display and 3-level occlusion sensitivity
• Manual and automatic bolus functions with anti-bolus (post-occlusion) release
• Built-in sliding potentiometer for automatic calibration and enhanced accuracy
• Vertical and horizontal rotatable fixation clamp for flexible mounting
• Memory for 2000 history records and automatic last-configuration recall
• Upgradeable options: high-definition color display, drug library, wireless monitoring

Technical specifications

• Syringes supported: 5 ml, 10 ml, 20 ml, 30 ml, 50(60) ml
• Flow rate ranges by syringe size: 5 ml 0.1–150 ml/h; 10 ml 0.1–300 ml/h; 20 ml 0.1–600 ml/h; 30 ml 0.1–900 ml/h; 50 ml 0.1–1200 ml/h
• Flow rate step: 0.1 ml/h
• Flow rate accuracy: ≤±2% (mechanical ±1%)
• Volume limit: 0.1–9999.9 ml
• Purge rates: 5 ml 150 ml/h; 10 ml 300 ml/h; 20 ml 600 ml/h; 30 ml 900 ml/h; 50 ml 1200 ml/h
• BOLUS rates by syringe size: 5 ml 10–150 ml/h; 10 ml 10–300 ml/h; 20 ml 10–600 ml/h; 30 ml 10–900 ml/h; 50 ml 10–1200 ml/h
• KVO: 0.1–5 ml/h
• Alarms: audio & visual for occlusion (3 sensitivity levels), infusion finished, near empty/empty, battery low/out, motor reverse, parameter errors, system failure, AC lost
• Display: 2.8" LCD & LED (high-definition color display optional)
• Power: ≤25 W, 85–265 V AC, 50/60 Hz
• Battery: approx. 10 hours at 5 ml/h
• Operating conditions: +5°C to +40°C, RH ≤80%, 70–106 kPa
• Memory: 2000 history records and last configuration memory
• Additional: direct pressure sensor with dynamic graphical output, anti-bolus function, automatic calibration potentiometer, rotatable clamp

Clinical applications & compatibility

• Suitable for ICU, anesthesia, infusion therapy, pediatrics and other clinical settings requiring precise syringe infusion
• Compatible with syringes from all standard manufacturers (5–50/60 ml)
• Configurable modes support weight-based dosing and time/volume protocols

Options & upgrades

• High-definition color display upgrade
• Upgradable drug library for protocol management
• Wireless monitoring module available for integration with hospital monitoring systems
