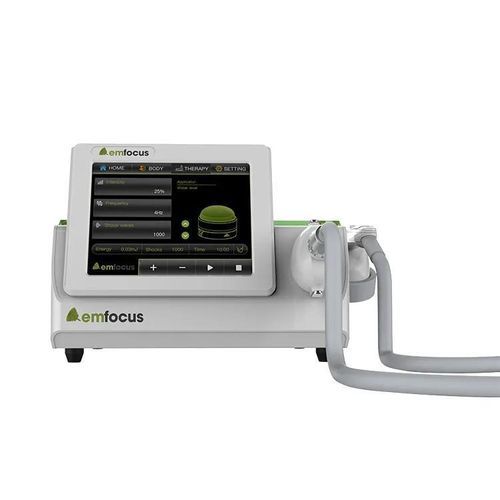

Musculoskeletal disorder ESWT unit EMFOCUS

table-top

Product introduction
EMFOCUS is an electromagnetic focused shockwave therapy system that generates pulsed electromagnetic fields by a high-voltage discharge into a precision coil. Shockwaves form in a water medium and are transmitted to tissue, delivering stable energy output, extended focal length and controllable penetration depth.

Technical parameters
EMFOCUS
Power consumption: ≤400 W
Penetration depth: >60 mm
Frequency options: 1-4 Hz / 1-6 Hz / 1-8 Hz / 1-10 Hz
Pressure range: 5-50 MPa
Energy: 0.26-0.39 mJ/mm²
Voltage: 100-110 V or 220-240 V
Applicator: 1 PCS
Screen size: 12.1 inches
Dimensions: 47 × 37 × 23 cm
Net weight: 30 kg

Product features

• A. Appearance
  • 12.1 inch touchscreen
  • Pluggable handle
  • Handle adjustment button
  • Suitable for multiple clinical scenarios
• B. Interface
  • Professional treatment guidance
  • Treatment areas: 9 body parts
  • Symptom guide: 11 conditions
  • Treatment parameter references including intensity, frequency, number of shocks, treatment course, etc.
• Flexible parameter settings
  • Intensity: 10%–100% (steps of 5%)
  • Frequency options: 1–4 Hz (also available 1–6 Hz / 1–8 Hz / 1–10 Hz)
  • Shock counts: 500 / 1000 / 1500 / 2000 etc.
  • Records energy, hits and time
• No gel pad
  • Dynamic penetration depth control via applicator bladder water level and energy adjustment button on the handle
• C. Applicator
  • Electromagnetic induction enables precise metering of shockwave energy
  • Specialized coil concentrates shockwaves produced in water and transmits them externally to biological tissue

Treatment

• Musculoskeletal disorders: High-energy acoustic waves target muscle and joint tissue to stimulate healing responses, increase blood flow, reduce pain and improve mobility. Indications include chronic pain in shoulders, knees, elbows, hips, plantar fasciitis and heel pain.
• Erectile dysfunction (ED): Focused shockwave therapy applied to the penis can improve blood flow by stimulating neovascularization and increasing vascular elasticity, addressing vascular contributors to ED.
• Tendinitis and soft tissue injuries: Targets injured areas with high-energy waves to promote repair, reduce inflammation and relieve pain.
• Osteoarthritis: Stimulates collagen production and tissue repair to reduce pain and improve joint function; helps break down scar tissue and adhesions.

Maintenance principles
Routine maintenance consists primarily of monthly water changes using distilled or purified water. The coil generates heat during operation; the water-cooling system dissipates heat and maintains stable energy output. Regular water changes prevent debris buildup, ensure efficient cooling and allow EMFOCUS to adjust penetration depth by controlling bladder water level.

Technical specifications

• Power: ≤400 W
• Penetration depth: >60 mm
• Frequency: 1-4 Hz (also referenced 1-6 Hz / 1-8 Hz / 1-10 Hz)
• Pressure range: 5-50 MPa
• Energy: 0.26-0.39 mJ/mm²
• Voltage: 100-110 V or 220-240 V
• Applicator: 1 piece
• Screen: 12.1 inch touchscreen
• Dimensions: 47 × 37 × 23 cm
• Net weight: 30 kg
• Features: pluggable handle, handle adjustment button, no gel pad required, dynamic penetration control, water cooling and auto circulation
