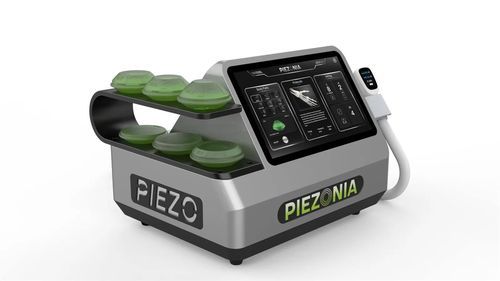

Musculoskeletal disorder ESWT unit PZO-G1

transportable

Product Overview
Piezonia PZO-G1 is a next-generation piezoelectric focused shockwave system designed for clinical rehabilitation and pain management. It combines precise focal targeting, stable energy output, patient comfort and intelligent operation to support efficient outpatient and inpatient treatment workflows.

Key Features

• Comfort - Concentrated focal energy reduces peripheral stimulation for improved patient tolerance.
• Durability - Engineered for high-frequency clinical use with stable performance over its lifecycle.
• Intelligent - Smart presets and multiple operating modes streamline workflow and support reproducible treatments.
• Stability - Consistent energy delivery with a handpiece lifespan of up to 5,000,000 shots.
• Precision - Focused energy reaches up to 65 mm depth for layered, depth-controlled therapy.

Highlights

• High-precision piezoelectric focused shockwave generator.
• Stable, repeatable energy output.
• Precise focal targeting for comfortable treatment.
• 7 interchangeable depth pads for flexible focal adjustment.
• Focal depth coverage: 0–65 mm.
• Handpiece lifespan up to 5,000,000 shots.
• Intelligent programs and a 13.3-inch HD touchscreen for intuitive operation.
• 3 intelligent modes for different treatment rhythms.
• Wide frequency range: 1–10 Hz.
• Rugged design for long-term clinical use.

About Piezonia
Piezoelectric focused shockwave technology uses a spherical array of piezoelectric crystals that fire simultaneously to converge acoustic energy at a predefined focal point, creating a concentrated and precise treatment zone.

How It Works
Unlike technologies that rely on mechanical movement to produce shockwaves, piezoelectric systems convert electrical energy directly into acoustic waves via crystal activation. This yields higher focusing accuracy, more stable output performance and an overall more comfortable treatment experience for patients.

Range of Indications

• Lateral epicondylopathy (tennis elbow)
• Calcifying tendinopathy of the shoulder
• Medial epicondylopathy (golfer's elbow)
• Myofascial pain syndrome / trigger point treatment
• Pseudarthroses / stress fractures
• Greater trochanteric pain syndrome
• Patellar tendinopathy
• Medial tibial stress syndrome
• Plantar fasciitis, with or without heel spur
• Achilles tendinopathy

Technical Specifications

• Brand: Piezonia
• Model: PZO-G1
• Depth pads: 7 replaceable depth pads
• Focal depth range: 0–65 mm
• Handpiece driving voltage: 4.5–6.5 kV
• Handpiece discharge time: 1–2 µs
• Work intensity: 1–20 levels
• Work frequency: 1–10 Hz
• Screen size: 13.3 inch
• Handle lifespan: 5,000,000 shots
• Operating modes: 3 modes
• Input voltage: AC 100–240 V
• Power consumption: ≥ 100 W
• Packaging dimensions: 495 × 585 × 585 mm
• Weight: 40 kg
