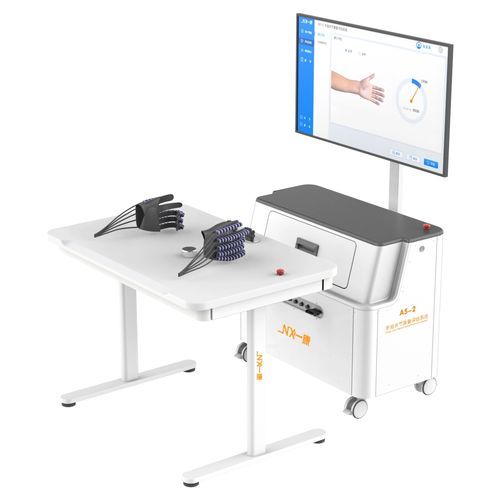

Hand mobility rehabilitation system A5-2S

grip strengthcomputer-assistedrobotic

01 Product Introduction
The A5-2S Finger Joint Rehabilitation Assessment System is an integrated rehabilitation device combining objective assessment and targeted treatment. Using a soft pneumatic glove together with surface electromyography (SEMG/EMG), camera-based motion capture and force sensing, the system detects patients' hand movement intentions and provides coordinated active-plus-passive training. The platform also offers quantitative hand function assessment and patient data management to support clinicians in creating personalized therapy plans and monitoring progress.

02 Function Details

• Patient information management: Records demographic and clinical data including gender, age, Brunnstrom stage, glove size, affected side and diagnosis. Assessment and treatment sessions are automatically archived to support individualized care and longitudinal follow-up.
• Quantitative hand function assessment: Measures finger-by-finger movement angles and range of motion (ROM), generates visual reports and rehabilitation trend charts for objective evaluation and clinical decision support.
• Intelligent pneumatic–electro-synchronous combined training:
  • Triggered pneumatic–electro training: Real-time EMG captures voluntary activation to trigger synchronized pneumatic assistance and electrical stimulation for active-plus-passive training.
  • Induced pneumatic–electro training: EMG-driven coordination of pneumatic and electrical stimulation intensity, with adaptive assistance based on real-time monitoring.
• Integrated multi-mode training:
  • Mirror-guided mode: Camera captures movements of the unaffected hand and drives the affected hand to reproduce tasks, supporting bilateral motor relearning.
  • Passive fine motor training: Supports passive exercises such as fist clench, single-finger tapping, finger opposition and pinch movements.
  • Resistance training mode: Soft glove provides bidirectional progressive resistance with five adjustable levels to strengthen hand muscles.
  • Active and combined training: Uses camera and force sensor for task-based active training with scene interaction and game feedback; supports custom programs aligned with rehabilitation goals.
  • Gamified interactive training: Supports three input modalities—camera, EMG and grip force—to increase patient engagement and adherence.

03 Application Scenarios
This system is intended for use in rehabilitation medicine, orthopedics/hand surgery, neurology, occupational injury rehabilitation and geriatric therapy. Typical indications include:

• Orthopedic conditions and postoperative rehabilitation: Finger joint injuries and postoperative care after fractures, dislocations, tendon injuries; degenerative or inflammatory joint conditions such as osteoarthritis, rheumatoid arthritis and tenosynovitis.
• Nervous system rehabilitation: Central nervous system lesions (stroke, cerebral palsy, spinal cord injury) and peripheral nerve injuries (median, ulnar, radial nerve lesions).
• Muscle and tendon rehabilitation: Disuse-related hand muscle atrophy and weakness, strains or tears, finger stiffness, contractures and abnormal muscle tone.

Additional product capabilities

• Integrated pneumatic glove hardware and electrical stimulation subsystems enabling synchronous assistance.
• Real-time monitoring and adaptive assistance driven by EMG and force sensors.
• Automated data archiving and report generation for therapy tracking and outcome analysis.

04 Technical specifications

• Model: A5-2S
• Product type: Finger joint rehabilitation assessment and training system (assessment + treatment)
• Key technologies: Soft pneumatic glove, surface electromyography (SEMG/EMG), camera-based motion capture, force sensor, pneumatic and electrical stimulation
• Training modes: Triggered pneumatic–electro-synchronous, induced pneumatic–electro-synchronous, mirror-guided, passive fine motor training, resistance training, active/combined training, gamified interactive training
• Resistance levels: 5 adjustable levels (soft glove)
• Inputs for gamified training: Camera, EMG, grip force
• Assessment capabilities: Quantitative finger movement angle and ROM per finger, automatic visual reports and rehabilitation trend charts
• Patient data recorded: gender, age, Brunnstrom stage, glove size, affected side, diagnosis, archived assessment and treatment records
• Typical application areas: Rehabilitation medicine, orthopedics/hand surgery, neurology, occupational injury rehabilitation, geriatrics
