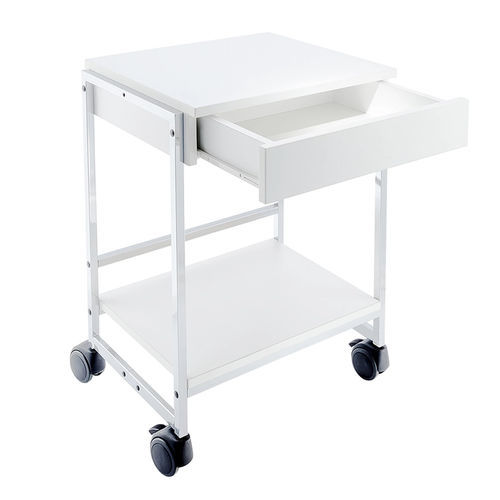

Medical trolley 126-003

equipment1-drawer2-shelf

Product
equipment trolley (trailer) (Art-No.: 126-003)

Product types

• Medical Device
• Intermediate product

Product details
WxDxH: 770 x 740 x 1760mm
Number of rails: 4
Rail Cross section: 25 x 10mm
Castors: (4x) Ø 125mm, lockable, antistatic
Clamping range: Ø 20-40mm
Max. payload: 120kg
Weight: 55kg
Material: stainless steel / aluminum
Surface: brushed / anodized

Product advantages

• attachment to hospital beds
• infinitely adjustable mounting clamps
• infinitely adjustable distance between mounting clamps
• 360° rotatable mounting clamps
• quick release clamps
• infinitely height-adjustable rails acc. to DIN EN ISO 19054 for attachment of accessories
• stable profile construction
• stable stainless steel plate in foot
• potential equalisation connection
• 4 swivel castors for use in tiny spaces
• delivered with rails pre-mounted
• retrofitting of rails possible

Technical specifications

• WxDxH: 770 x 740 x 1760mm
• Number of rails: 4
• Rail Cross section: 25 x 10mm
• Castors: (4x) Ø 125mm, lockable, antistatic
• Clamping range: Ø 20-40mm
• Max. payload: 120kg
• Weight: 55kg
• Material: stainless steel / aluminum
• Surface: brushed / anodized
