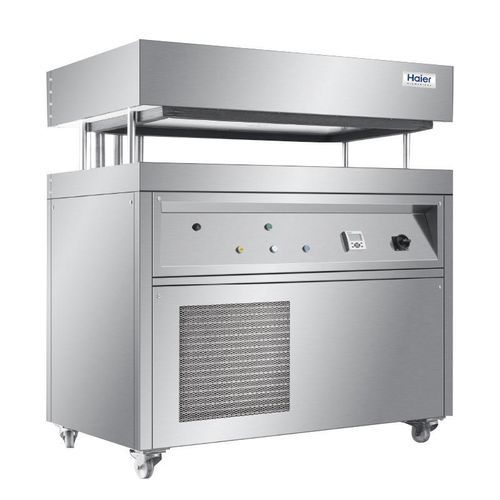

Laboratory freezer XSD-24FL

for clinical laboratoriesblood bankfor blood plasma

Overview

The XSD-24FL Plasma Blast Freezer is a plate-contact rapid-freezing unit engineered for the controlled, rapid freezing of blood plasma and biological samples. Designed for blood stations, blood banks and medical laboratories, it achieves core temperatures below -30°C within one hour and can reach rapid-freezing temperatures down to -60°C for selected models.

Product features

• Flexible settings: adjustable storage temperature, freezing time and defrosting time to match laboratory protocols.
• Electric lifting system: precise and quiet height control for trays compared with pneumatic alternatives.
• PLC-controlled operation: pre-cooling, freezing and defrost cycles managed by PLC to reduce operator error and protect plasma integrity.
• Password-protected parameters: secured configuration to prevent unauthorized changes.
• Rapid-freezing tray design: optimized tray layout to increase throughput and reduce handling time.
• User-friendly interface: clear temperature display for quick monitoring.
• Low rapid-freezing temperature: capable of reaching -60°C for improved freezing performance.
• Data traceability and export: storage data and freezing curves exportable via USB for traceability and record-keeping.
• Efficient refrigeration: high-efficiency compressor, dual-cooling system and hydrocarbon refrigerant for energy-efficient operation and reduced environmental impact.

Specifications (from product table)

• Model: XSD-24FL — Type: Plate contact quick-freezing — Power supply: 3N 380-50/60 V/Hz — External dimension (mm): 1455 × 915 × 1575 — Weight: 480 kg
• Model: XSD-48WFL — Type: Plate contact quick-freezing — Power supply: 3N 380-50/60 V/Hz — External dimension (mm): 2040 × 880 × 1895 / 1500 × 860 × 1850 — Weight: 320 / 360 kg

Main technical characteristics (selected main model)

• Model: XSD-24FL
• Rapid-cooling type: Plate contact quick-freezing
• Power supply: 3N 380-50/60 V/Hz
• External dimensions (mm): 1455 × 915 × 1575
• Weight: 480 kg
• Minimum rapid-freezing temperature: down to -60°C
• Control & data: PLC control module, password-protected settings, USB export for data and curves
• Refrigerant & efficiency: Hydrocarbon refrigerant, high-efficiency compressor, dual-cooling system
