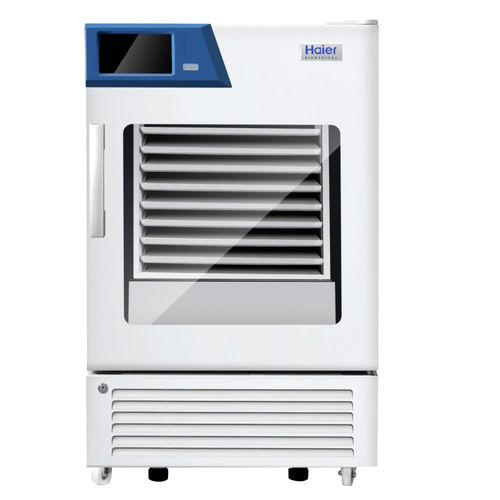

Thermoelectric laboratory incubator HXZ-1 series

for scientific researchfor plateletsfor hospitals

This incubator integrates an internal platelet agitator to maintain optimal storage conditions for platelets after collection. Designed for hospital blood banks, transfusion centers and research laboratories, it provides stable temperature control, gentle oscillation and built-in UV disinfection to support platelet quality preservation.

Features

• Data traceability for sample and process records
• Multiple alarms: high/low temperature, power failure, sensor fault, door ajar, low battery, agitator abnormality and remote alarm capability
• Reliable oscillation: agitator mechanism with alarm and calibration device to ensure consistent platelet motion
• Low noise operation: semiconductor temperature control and EBM oscillating motor for a quiet environment
• Energy saving: semiconductor temperature control with PID algorithm; up to approx. 30% energy saving vs. traditional compressor systems
• Superior insulation: 60 mm thickened foam layer; with a 25°C ambient and empty load, chamber center rises from 22°C to 24°C in more than 4 hours during power failure
• Precise temperature control: semiconductor system maintaining internal temperature at 22°C ± 1°C
• Ultraviolet disinfection: built-in UV function to help maintain sterility

Technical specifications

• Model: HXZ-149 — Effective Capacity (L): 149; Trays: 9; Power Supply (V/Hz): 220/50/60; Exterior Dimensions (mm): 625*795*1050; Net Weight (kg): 114
• Model: HXZ-1369 — Effective Capacity (L): 1369; Trays: 18; Power Supply (V/Hz): 220/50/60; Exterior Dimensions (mm): 1545*915*1945; Net Weight (kg): 345
