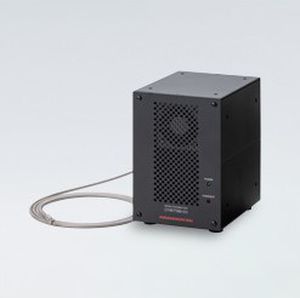

UV-visible spectrometer OPAL-Luxe®

for researchcompacthigh-resolution

Overview
The OPAL-Luxe is a compact, multi-channel spectrometer with an ultra-high dynamic range. It performs simultaneous multi-wavelength spectral measurements across a broad wavelength range and is suitable for applications where strong and weak signals coexist. The spectrometer's optical system has been newly designed to utilize its dynamic range, providing high sensitivity and high wavelength resolution while minimizing stray light.

Notes
This product name might be changed in China and Korea.
OPAL-Luxe is a registered trademark of Hamamatsu Photonics K.K. (China, EU, Japan, Switzerland, UK).

Awards / News
OPAL-Luxe named LASER World of PHOTONICS Innovation Award 2023 — Sensors, test and measurement / Optical Measuring System / Imaging Finalist.

Documentation
Catalog available (PDF, 1.9 MB).

Specifications (table)

• Wavelength range: 200 nm to 900 nm
• Wavelength resolution (FWHM): ≤ 0.9 nm (typ. 0.85 nm)
• Wavelength accuracy: ±0.1 nm
• Exposure time: 100 μs to 32.7 s
• Repetition frequency: 100 Hz
• Number of photosensitive device channels: 2048 ch
• Pixel size: 12 μm × 1536 μm
• Device cooling temperature: −5 °C
• Readout noise (typ.): 12 electrons rms
• Dark current (typ.): 1.5 electrons/pixel/sec (−5 °C)
• Dynamic range (typ.): 2,500,000:1
• AD resolution: 16 bit
• Spectrograph F number: 2.2
• External trigger input: TTL level / High impedance (D-sub 15-pin connector)
• Interface: Ethernet (CAT.6) within 30 m
• Power supply: DC 24 V
• Power consumption: Approx. 40 VA
• Ambient operating temperature: +10 °C to +35 °C
• Ambient operating humidity: 30% to 80% (no condensation)
