Emergency ventilator HAMILTON‑EM7

electronicintegrated drivertransport

Overview

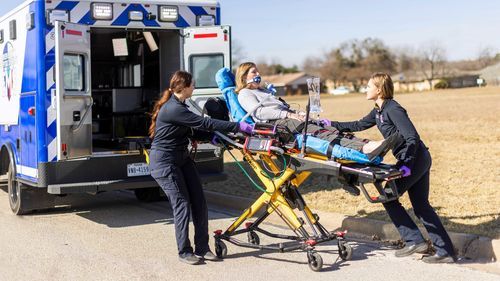

The HAMILTON‑EM7 is a portable emergency and EMS ventilator designed for prehospital care, emergency departments and disaster response. It provides multiple mounting options for integration into ambulances and mobile environments while supporting invasive and noninvasive ventilation for adult and pediatric patients.

Key features

• Compact, lightweight design for transport and rapid deployment
• Sturdy aluminum housing suitable for challenging environments
• Battery runtime up to 9 hours
• Supports adult and pediatric patient groups
• Invasive and noninvasive ventilation including enhanced O2 therapy

Performance and therapy
The device integrates a powerful turbine and supports a wide range of ventilation therapies to meet mask‑ventilated and invasive ventilation needs.

• Integrated turbine delivers flows > 215 l/min to support NIV with leaks
• Supports invasive and pressure‑controlled modes as well as NIV, CPAP and increased O2 flow (> 15 l/min)
• Intelligent ventilation features such as ASV (Adaptive Support Ventilation®)

Mounting, circuit and consumables
Designed for mission flexibility with multiple mounting and handle options and a preassembled breathing circuit set for quick setup.

• Universal mounting solutions: mount on rails, poles or stretchers and release with one hand
• All‑in‑one preassembled breathing circuit with integrated pressure lines, expiratory valve and flow sensor
• Consumables available for adult and pediatric use (breathing circuits, NIV masks, airway filters/HMEFs)

User interface and workflow support
Designed for intuitive operation and fast readiness to support clinicians from startup to intubation.

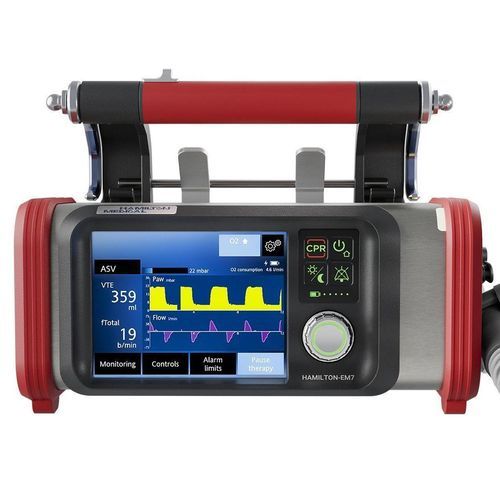

• Color touch screen, press‑and‑turn knob and hard keys for intuitive operation
• Fast device startup: about 30 seconds including self‑test; workflow‑based prechecks prepare device in no more than 90 seconds
• Guided preop checks, CPR ventilation settings and RSI support
• Customizable quick‑start modes for invasive and noninvasive ventilation; unused modes can be deactivated

Additional features
The device supports connectivity and optional modules for extended functionality.

• Hamilton Connect Module for connectivity
• Interface protocol enabling data transfer via Bluetooth to third‑party devices
• Optional accessories: mesh nebulizer, time‑based capnography, night‑vision display

Technical specifications

• Model: HAMILTON‑EM7
• WxDxH: 280 x 133 x 126 mm (without handle)
• Weight: < 4.5 kg
• Battery run time: up to 9 hours
• Turbine flow capability: > 215 l/min
• Patient groups: adult and pediatric
• Housing: sturdy aluminum housing
• Ventilation modes: volume‑controlled (S)CMV, SIMV; pressure‑controlled PCV+, DuoPAP, SPONT; ASV; NIV, NIV‑ST, CPAP; O2 therapy (> 15 l/min)
• Workflow: fast startup (~30 s), guided prechecks, CPR settings, RSI support
• Connectivity: Hamilton Connect Module, Bluetooth data transfer
• Consumables: preassembled breathing circuit set, NIV masks, airway filters/HMEFs
• Mounting: multiple mounting and handle solutions for stretchers, rails and poles
