Storage trolley RGEE330ME
stainless steelwith swing doors2-door

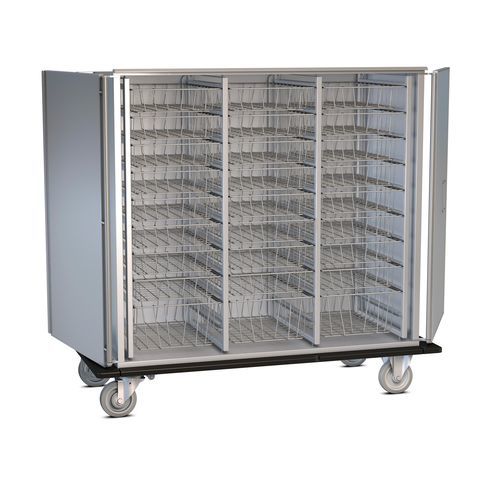

Storage trolley - RGEE330ME - Hammerlit - stainless steel / with swing doors / 2-door
Storage trolley - RGEE330ME - Hammerlit - stainless steel / with swing doors / 2-door
Add to favorites
Compare this product
Go to the Hammerlit website for more information

Characteristics

Function
storage
Material
stainless steel
Components
2-door, with swing doors
Configuration
mobile, triple-module, closed-structure

Description

Description
  • Material: stainless steel, material 1.4301 (AISI 304)
  • Fully welded body with brushed exterior sheet
  • Roof fully welded
  • 4 vertical sliding handles with reinforcement tabs; two handles integrated in the door hinges and pivot with the doors
  • Smooth, cuboid internal cabinet without undercuts or protruding sheet profiles
  • 4 shelf-side sections (3-row), each row with 10 pairs of fixed stainless steel insertion U-rails to accept ISO modules 400 x 600 x 100 mm
  • Usable rail height: 20 mm
  • 2 double-walled, reinforced swing doors
  • 2-point rotary door lock, lock code KT3010, with 2 keys (not recommended for machine cleaning)
  • Doors dust-protected by circumferential light-grey silicone profile gasket
  • Doors swivel 270° and can be fixed at the end positions by magnets
  • Bottom bumper strips all around in solid plastic (PE, black)
  • Chassis: 2 swivel castors with central stop and 2 fixed castors, wheel diameter 160 mm; tread: elastic, grey, non-marking; wheel bearings: double-precision sealed ball bearings; castor housings: galvanized steel sheet (not recommended for machine cleaning)
  • Internal dimensions (W x D x H): 1355 x 640 x 1228 mm
  • External dimensions (W x D x H): 1615 x 806 x 1511 mm


Technical specifications
  • Material: stainless steel 1.4301
  • Body: fully welded, exterior brushed sheet
  • Module accommodation: ISO modules 400 x 600 x 100 mm (fixed insertion U-rails)
  • Number of insertion U-rails: 3 rows, 10 pairs per row (total 30 pairs)
  • Usable rail height: 20 mm
  • Doors: 2 double-walled swing doors, 270° swivel, magnetic catch, silicone profile gasket
  • Lock: 2-point rotary door lock, KT3010 with 2 keys
  • Chassis: 2 swivel castors (with central stop), 2 fixed castors, wheel diameter 160 mm, elastic non-marking tread
  • Wheel bearings: double-precision sealed ball bearings
  • Castor housings: galvanized steel sheet
  • Bumper strips: solid plastic (PE), black
  • Internal dimensions (W x D x H): 1355 x 640 x 1228 mm
  • External dimensions (W x D x H): 1615 x 806 x 1511 mm
  • Note: parts not recommended for machine cleaning
