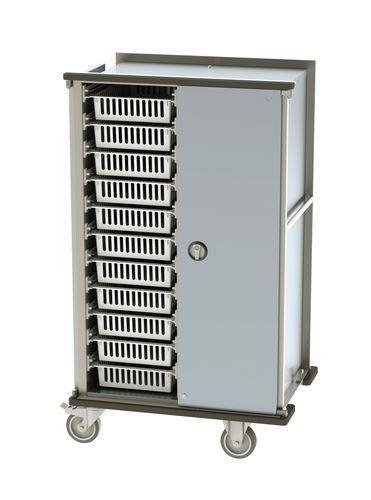

Medical trolley RGAE322MTRS
for consumablesfor medicinetransport

Medical trolley - RGAE322MTRS - Hammerlit - for consumables / for medicine / transport
Medical trolley - RGAE322MTRS - Hammerlit - for consumables / for medicine / transport
Add to favorites
Compare this product
Go to the Hammerlit website for more information

Characteristics

Applications
medical
Use
for medicine, for consumables
Function
transport, storage
Material
stainless steel, anodized aluminum
Components
with basket, 2-door
Configuration
mobile, modular

Description

Overview
  • Chassis and frame in stainless steel
  • Body and doors: anodized aluminium
  • Ergonomic sliding handles on both ends
  • Top edge bumper on door side in solid plastic (PE, black)
  • 2‑row configuration with plastic carrier rails for ISO modules 400 x 600 mm (W×D) or pharmacy containers 400 x 600 mm (W×D)
  • Capacity: 22 modules (400 x 600 x 100 mm)
  • Plastic carrier rails with stop function
  • 2 double‑walled reinforced swing doors
  • 2‑point rotary door lock, lockable (KT3010, with 2 keys)
  • Doors swivel 270° and can be fixed at the ends by magnets
  • Dust protection: continuous light‑grey silicone profile seal
  • Lower bumpers all around in solid plastic (PE, black)
  • Castors: 2 swivel castors with double‑stop and 2 fixed castors
  • Wheel diameter: 160 mm
  • Tires: elastic, grey, non‑marking
  • Wheel bearings: double precision ball bearings, sealed
  • Castor housing: galvanized steel sheet
  • Dimensions (W×D×H): approx. 1007 x 744 x 1708 mm


Additional information
  • Suitable for ISO modules 400 x 600 mm or pharmacy containers 400 x 600 mm
  • Designed for modular insertion (22 modules at 100 mm height per module)


Technical specifications
  • Article no.: RGAE322MTRS
  • Type: ISO module cabinet trolley 2‑row, carrier rails
  • Frame / chassis: stainless steel
  • Body & doors: anodized aluminium
  • Module / container format: 400 x 600 mm (W×D)
  • Capacity: 22 modules (400 x 600 x 100 mm)
  • Doors: 2 double‑walled swing doors, 270° swivel, magnetic fixation
  • Lock: 2‑point rotary lock, lockable (KT3010) with 2 keys
  • Seals: continuous light‑grey silicone profile seal
  • Bumpers: solid plastic (PE), black (top and bottom)
  • Wheels: 2 swivel with double‑stop + 2 fixed; diameter 160 mm; tires elastic, grey, non‑marking
  • Wheel bearings: double precision ball bearings, sealed
  • Castor housing: galvanized steel sheet
  • Dimensions (W×D×H): approx. 1007 x 744 x 1708 mm
