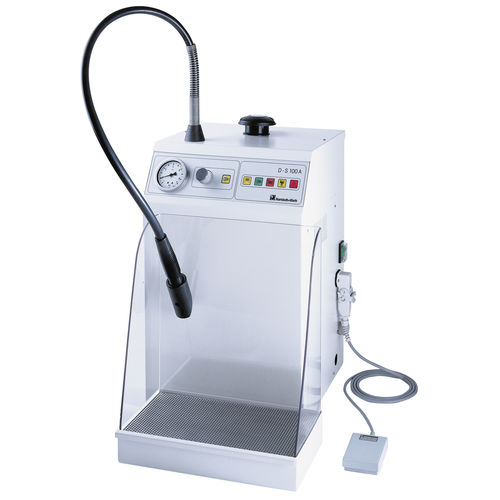

dental laboratory steam generator
D-S 100

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
dental laboratory steam generator dental laboratory steam generator - D-S 100


  • Applications:

    for dental laboratories


The D-S 100 steam blasting unit is largely the same as the D-S 100 A model, but has a somewhat simpler design. Water can only be supplied to this unit manually. When the water tank is almost empty, an acoustic signal sounds and a display lights up. The signal persists until the water tank is refilled.

The ergonomically designed and easy-to-hold hand piece is made of special, heat insulating,
solid plastic. The thermal steam hose connected to the hand piece is extremely flexible and has a textile protective sleeve.
Technical data
Width325 mm
Depth305 mm
Height540 mm
Electrical connection220 V, 50 Hz
Power consumption2.6 kW
Steam temperature165 °C
Boiler volume2.3 l
Water supply tank5 l with manual refilling and pump for external water supply
Safety valveOpens at 7 bar
Operating pressure5 bar
Temperature limiter175 °C
Weight20 kg without spray guard
HousingDurable, environmentally friendly stainless steel housing, RAL 9002, powder coated
Required fusing for mains connection16 A at 220 V
