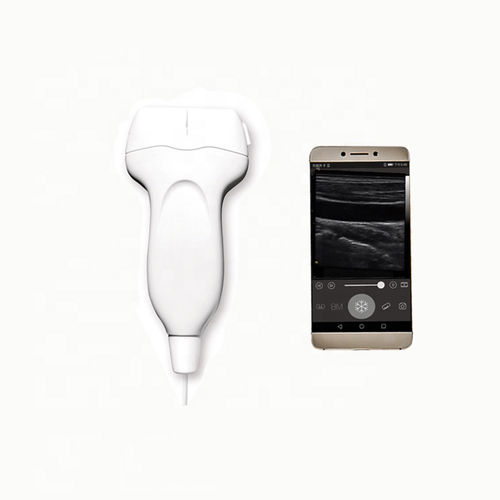

Hand-held ultrasound system HS-UP20L
for anesthetic and intensive care ultrasound imagingfor musculoskeletal ultrasound imagingfor intravascular ultrasound imaging

hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for anesthetic and intensive care ultrasound imaging, for musculoskeletal ultrasound imaging, for intravascular ultrasound imaging, for skin ultrasound imaging
Imaging modes
B/W
Options
all-in-one probe
Probe type
linear-array
Probe frequency

Max.: 10 MHz

7.5 MHz

Min.: 5 MHz

Weight

0.1 kg (0.22 lb)

Length

119 mm (4.7 in)

Height

66 cm (26 in)

Depth

26 cm (10.2 in)

Description

Operating System and Application: Android smart phone (SAMSUNG S8, S9,HUAWEI MATE 9, MATE10, P10) / Windows tablet, computer, laptop Advantages: low power consumption, which can connected to android smart phone Scanning Mode: electric  linear Display Mode: B, B/B, B/M, 4B, M Gray Scale: 256 Scanning Depth: 3-120mm TGC: 8TGC adjustments Cine Loop: 512 frames Gain: 0-100dB adjustable Language: English/Chinese/French/Arabic/Spanish Central Frequency: 7.5MHz(5-10MHz) Probe Port: USB typeA/USB type C Colors: 9 Image Conversion: left/right, up/down Application: Shallow application, ultrasound-guided percutaneous drainage Small parts, such as thyroid, joint, blood vessel and so on N/W: 100g Support system: Android / Windows Small and Light Low Power Consumption:B-mode is around 2.5W, C-mode is around 3W . Anti-interference, Stable Transmission Long Working Time :≥4h Can be flexibly matched with mobile phones, tablets and laptop.
