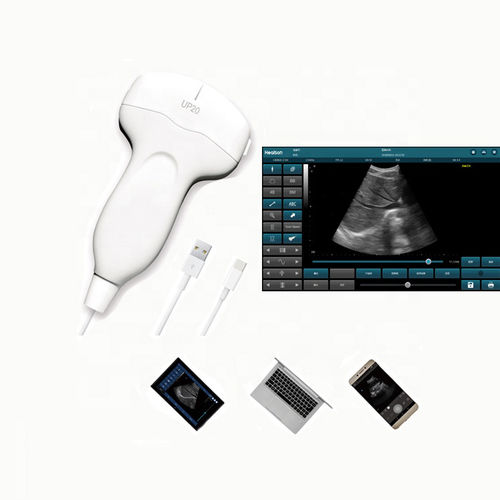

Hand-held ultrasound system HS-UP20

for gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imagingfor breast ultrasound imaging

Operating System and Application: Android smart phone (SAMSUNG S8, S9,HUAWEI MATE 9, MATE10, P10) / Windows tablet, computer, laptop Advantages: low power consumption, which can connected to android smart phone Scanning Mode: electric convex Display Mode: B, B/B, B/M, 4B, M Gray Scale: 256 Scanning Depth: maximum 240mm TGC: 8TGC adjustments Cine Loop: 512 frames Gain: 0-100dB adjustable Language: English/Chinese/French/Arabic/Spanish Central Frequency: 3.5MHz(2.5-4.5MHz) Probe Port: USB type-A / USB type-C Colors: 9 Image Conversion: left/right, up/down Application: OB/GYN, Urology, Abdomen, Emergency, and ICU N/W: 115g Support system: Android / Windows Small and Light Low Power Consumption：B-mode is around 2.5W, C-mode is around 3W . Anti-interference, Stable Transmission Long Working Time :≥4h Can be flexibly matched with mobile phones, tablets and laptop.
