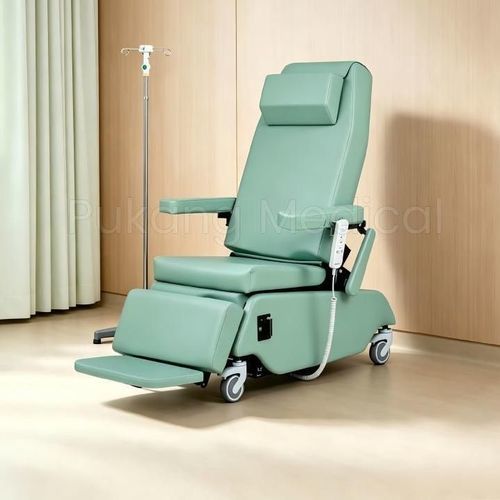

Chemotherapy hemodialysis chair Y-51

electricrecliningheight-adjustable

Product overview:
The Y-51 electric dialysis chair is a motorized treatment recliner designed for hemodialysis, peritoneal dialysis and long-term infusion therapy. It provides full-electric multi-position adjustment to enable appropriate treatment postures, facilitate patient access and reduce caregiver effort. Suitable for dialysis wards, outpatient clinics and rehabilitation centers.

Functions:

• Overall dimension (folded): L1370 x W795 x H1270 mm (±10 mm)
• Backrest tilt range: -10° ~ 70° (±5°)
• Leg-rest tilt range: 7° ~ -65° (±5°)
• Seat height from ground: 450–650 mm
• Armrest height: 670 mm
• Vertical adjustment range of armrest: 0–110° (±10°)
• Horizontal outward-flip range of armrest: 0–20° (±5°)
• Safe load-bearing capacity: 150 kg
• Caster diameter: 100 mm

Core Functions:

• Backrest recline
• Synchronized back-leg linkage
• Leg-rest adjustment
• One-click standard position reset
• Outward flipping armrests
• Rear-flip armrests
• Overall height adjustment
• One-click whole-chair recline
• Manual CPR emergency backrest lowering
• Single-foot brake system

Human-Centered Accessories:

• Hand-held controller: Waterproof medical-grade push-buttons with sensitive response; allows patients to fine-tune positions independently; surface is wipeable and disinfectable.
• IV-pole receptacles: Reserved mounting holes on both sides for quick installation of telescopic IV stand for fluid or blood-transfusion needs.
• Rear push handle: Recessed handle on the backrest for stable transfer force; rounded design reduces risk of sharp-edge injury.
• Headrest: Detachable ergonomic headrest with vertical height adjustment to support neck for different statures; antibacterial and waterproof cushion is removable for cleaning and disinfection.
• Wide footrest: Widened anti-slip footrest moves synchronously with leg-rest, supporting lower-limb placement for patients with edema or limited mobility.
• Casters: Four silent swivel casters paired with single-foot brake system for quiet rolling and smooth repositioning; wheel bodies resist disinfectant corrosion and lock during dialysis.

Technical specifications:

• Model: Y-51
• Intended use: Hemodialysis, peritoneal dialysis, long-term infusion/chemotherapy clinics
• Drive: Full-electric multi-position adjustment (multi-function electric)
• Dimensions (folded): L1370 x W795 x H1270 mm (±10 mm)
• Backrest tilt: -10° to 70° (±5°)
• Leg-rest tilt: 7° to -65° (±5°)
• Seat height: 450–650 mm
• Armrest height: 670 mm
• Armrest vertical adjustment: 0–110° (±10°)
• Armrest horizontal outward-flip: 0–20° (±5°)
• Safe load capacity: 150 kg
• Caster diameter: 100 mm
• Brake system: Single-foot brake
