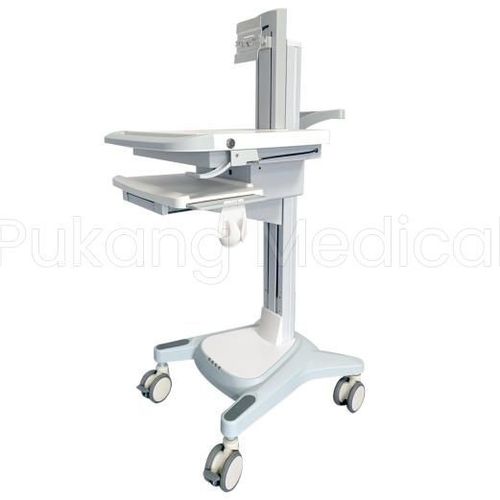

Laptop charging computer cart F-01for panel PCheight-adjustablesecure
Add to favorites
Compare this product
Characteristics
- Applications
- for laptop charging, for panel PC
- Other characteristics
- battery-powered, height-adjustable, secure
Description
Technical parameters：
Details：
Specifications：
- External dimensions: L750 x W530 x H1200–1400 mm (adjustable)
- Trolley weight: 30 kg
- Platform size: L527 x W485 mm
- Base size: L570 x W515 mm
- Compatible display size: ≤22"
- Screen tilt angle: 25°
- Screen swing: 180°
- Screen rotation: 90°
- Safe load capacity: 80 kg
Details：
- Countertop: ABS concave countertop integrated with an all-in-one push handle; adjustable height approx. 800–1050 mm to accommodate standing and seated users.
- Laptop compartment: Dimensions L460 x W350 x H62 mm with ventilated base, anti-theft lock and external power socket; suitable for 14–17" laptops.
- Countertop lock: two keys (one each side) to open and remove the countertop cover.
- Display stand: aluminum alloy stand compatible with a monitor or all-in-one PC.
- Keyboard and mouse: hidden ABS keyboard tray and pull-out mouse tray usable from left or right for compact storage.
- Lifting control: pneumatic lift mechanism for height and position adjustment of the console, display stand and keyboard/mouse tray.
- Handles: front handle integrated into the countertop and a detachable rear handle.
- Column: integrated aluminum alloy profile column with sprayed finish, wall thickness > 3 mm; hidden wiring channels on both sides; internal pneumatic lifting device and guide pulleys.
- Base: metal frame base with ABS surface, high load-bearing strength and stability; internal battery compartment available; optional lithium battery power supply.
- Casters: anti-static ultra-quiet double casters for smooth running and stable steering; front wheels with brakes, rear wheels without brakes.
Specifications：
- Model: F-01
- Dimensions (L x W x H): 750 x 530 x 1200–1400 mm (adjustable height)
- Trolley weight: 30 kg
- Platform size: 527 x 485 mm
- Base size: 570 x 515 mm
- Compatible display size: up to 22"
- Screen tilt: 25°; swing: 180°; rotation: 90°
- Safe load capacity: 80 kg
- Materials: ABS countertop, aluminum alloy column, metal frame base with ABS surface
- Features: pneumatic lift, hidden wiring channels, anti-theft laptop compartment, optional lithium battery power
