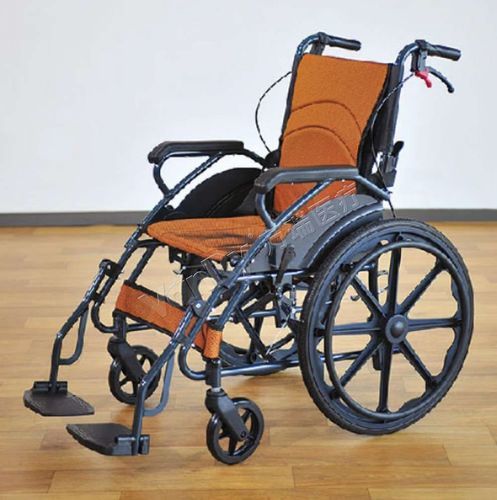

Manual wheelchair LY-100

indoorwith armrestssteel frame

Size parameters
Length × Width × Height: (935 × 610 × 900) ±10 mm
Seat width: 45 cm ±20 cm
Seat depth: 42 cm ±20 cm
Seat height: 46 cm ±20 cm
Backrest height: 40 cm ±20 cm
Front wheels: 8 inches
Rear wheels: 20 inches
Weight capacity: 100 kg

Specifications

• Steel welded frame with spray-coated finish, reinforced by dual cross-tubing.
• Breathable mesh seat and backrest cushion with 10 mm high-density foam core and double-layered canvas stitching for durability and comfort.
• Fixed armrests with blow-molded pads, ABS protective panels, ergonomically curved backrest, fixed footrest with plastic European-style footplate.
• Front-brake system standard; cable brake available as an option.
• Front swivel wheel with steel fork: 8-inch wheel with dual-bearing construction for high responsiveness.
• Rear wheel: standard 20-inch one-piece plastic or optional 24-inch steel-spoke adjustable wheel, secured with dual bearings.

Technical specifications

• Model: LY-100
• Overall dimensions (L×W×H): 935 × 610 × 900 mm (±10 mm)
• Seat width: 45 cm (±20 cm)
• Seat depth: 42 cm (±20 cm)
• Seat height: 46 cm (±20 cm)
• Backrest height: 40 cm (±20 cm)
• Front wheels: 8" swivel with steel fork and dual bearings
• Rear wheels: standard 20" one-piece plastic or optional 24" adjustable steel-spoke with dual bearings
• Frame: steel welded frame with spray-coated finish and dual cross-tubing reinforcement
• Seat & backrest: breathable mesh with 10 mm high-density foam core and double-layer canvas stitching
• Armrests: fixed with blow-molded pads and ABS protective panels
• Footrest: fixed footrest with plastic European-style footplate
• Brake: front brake standard; cable brake optional
• Rated weight capacity: 100 kg
