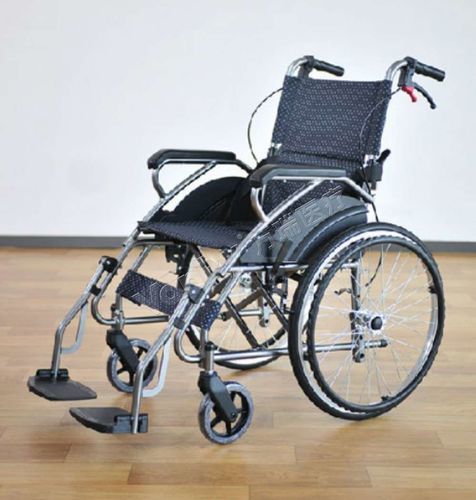

Manual wheelchair LY-200

outdoorwith legrestwith armrests

Overview
Steel welded-frame transport wheelchair with breathable mesh seat incorporating a 10 mm high-density foam core, fixed armrests with blow-molded pads and ABS protective panels, fixed footrest with European-style plastic footplate, front-brake system (cable brakes optional), 8-inch front swivel wheels and 20-inch or 24-inch rear wheel options. Intended for patient transport and daily mobility in hospitals, clinics and care facilities.

Size parameters
Length × Width × Height: 935 × 610 × 900 mm ±10 mm
Seat Width: 45 cm ±20 cm
Seat Depth: 42 cm ±20 cm
Seat Height: 46 cm ±20 cm
Backrest Height: 40 cm ±20 cm
Front Wheels: 8 inches
Rear Wheels: 20 inches (optional 24 inches)
Weight Capacity: 100 kg

Specifications

• Steel welded frame with spray-coated finish and dual cross-tubing reinforcement for structural rigidity.
• Breathable mesh seat and backrest with 10 mm high-density foam core; double-layer canvas stitching for wear resistance.
• Fixed armrests with blow-molded pads and streamlined ABS protective panels; ergonomically curved backrest profile.
• Fixed footrest with plastic European-style footplate for safe foot support during transport.
• Front-brake system standard; optional cable-actuated brakes available for additional control.
• Front swivel wheels: 8-inch small wheels with steel fork and dual-bearing construction for responsive steering.
• Rear wheel options: 20-inch one-piece plastic wheel or optional 24-inch steel-spoke wheel; both use dual bearings and secure fastening.

Technical specifications

• Model designation: LY-200
• Frame material and finish: Steel welded frame, spray-coated, dual cross-tubing reinforcement
• Seating: Breathable mesh + 10 mm high-density foam core; double-layer canvas stitching
• Armrests: Fixed, blow-molded pads with ABS protective panels
• Backrest: Ergonomically curved
• Footrest: Fixed with plastic European-style footplate
• Brakes: Front-brake system standard; cable brakes optional
• Front wheels: 8-inch swivel wheels with steel fork, dual bearings
• Rear wheels: 20-inch one-piece plastic wheel or optional 24-inch steel-spoke wheel with dual bearings
• Dimensions (L×W×H): 935 × 610 × 900 mm ±10 mm
• Seat: Width 45 cm ±20 cm; Depth 42 cm ±20 cm; Height 46 cm ±20 cm
• Backrest height: 40 cm ±20 cm
• Weight capacity: 100 kg
