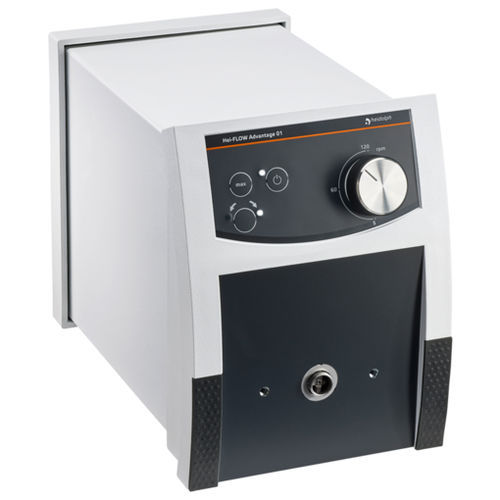

Compact laboratory peristaltic pump Hei-FLOW Advantage 01

compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
Add to favorites
Compare this product

Characteristics

Other characteristics
compact
Flow

Min.: 0 l/min (0 us gal/min)

Max.: 0.813 l/min (0.2148 us gal/min)

Description

For reproducible results and liquid transfer Flow rates of 0.38 - 813 ml/min with single-channel pump heads Multi-channel flow rates from 0.005 - 329 ml/min This pump drive is suitable for multi-channel operation Control speed (rpm), direction and On/Off function via analog interface for 0 – 10 V or 4 – 20 mA Adjust the variable speed from 5 - 120 rpm on the analog control knob. Your speed is held constant even under changing loads These models feature electronic speed control at an accuracy of ±3.5 % These models connect to an optional foot-pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety and superior ease of use in multiple sample fills A press of the max button accelerates the filling and draining of your tube At the press of a button the pump operates clockwise or counter-clockwise Multi-Channel Operation Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate Save time: tubing change is done in just seconds In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation Change your cassettes easily, even during operation – there are no restrictions Cassette adjustments and changes are simple, just click in place No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs

Catalogs
