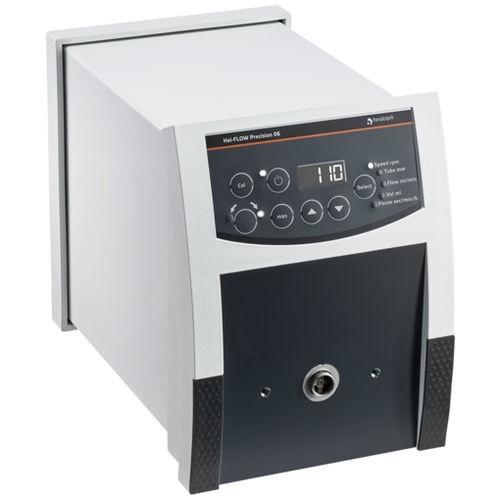

Compact laboratory peristaltic pump Hei-FLOW Precision 06

compact laboratory peristaltic pump
compact laboratory peristaltic pump
compact laboratory peristaltic pump
Add to favorites
Compare this product

Characteristics

Other characteristics
compact
Flow

Max.: 4.056 l/min (1.0715 us gal/min)

Min.: 0.0013 l/min (0.0003 us gal/min)

Description

Reproducibility - pumping and dosing Flow rates of 2.0 - 4,056 ml/min with single-channel pump heads This pump drive is not suitable for multi-channel operation High speed range from 24 - 600 rpm Control speed (rpm), direction and On/Off function via analog interface for 0 – 10 V or 4 – 20 mA or digital RS 232 interface Flow characteristic of pump heads in combination with various tubing diameters is pre-programmed for accurate flow rate numbers Digital read-out of: Speed (rpm) Tubing diameter Flow rate in ml/min Dosing volume Interval dosing Pause function Easily change all process parameters via control buttons These models connect to an optional foot-pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety and superior ease of use in multiple sample fills These models feature electronic speed control at an accuracy of ±2 % A press of the max button accelerates the filling and draining of your tube At the press of a button the pump operates clockwise or counter-clockwise Calibrate your flow volume and flow rate individually
