Ethylene oxide sterilization indicator MSWSC-0 series

sterilizationfor hydrogen peroxide sterilizationchemical

Product overview

• Categories: steam, ethylene oxide, plasma and formaldehyde chemical indicator cards for sterilization process monitoring in medical and laboratory environments.

Product details

• Example dimensions: 16 × 100 mm (example packaging: 200 tablets per box).
• Shelf life: 18 months from manufacture date.
• Storage: store at 5°C–30°C, in a dry, light‑protected environment, away from corrosive gases and acidic or alkaline substances.
• Customization: dimensions and catalog specifications can be customized to meet customer requirements.

Notes

• Indicator shows whether an item has been exposed to a sterilization cycle; it does not quantify sterilization efficacy or sterility assurance level.
• Discontinue use if unexpected discoloration or other anomalies are observed.

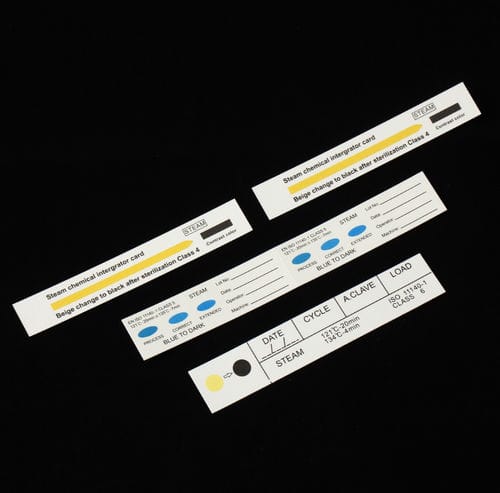

Table — available indicator card types and specifications
Project | Model number | Color change (before → after) | Size | Packaging
Ethylene Oxide Indicator Card | MSWSC-015200 | Red → Blue | 15 mm × 200 mm | 250 tablets/box
Steam Indicator Card | MSWSC-016120 (Class4) | Yellow → Black | 16 mm × 120 mm | 250 pieces/box
Steam Indicator Card | MSWSC-016100 (Class4) | Yellow → Black | 16 mm × 100 mm | 250 pieces/box
Steam Indicator Card | MSWSC-016100 (Class6) | Yellow → Black | 16 mm × 100 mm | 250 pieces/box
Steam Indicator Card | MSWSC-020140 (Class5) | Blue → Black | 20 mm × 140 mm | 250 tablets/box
Steam Indicator Card | MSWSC-020107 (Class6) | Yellow → Black | 20 mm × 107 mm | 250 pieces/box
Plasma Indicator Card | MSWSC-016100 | Red → Yellow | 16 mm × 100 mm | 250 pieces/box

Technical characteristics / specifications

• Indicator categories: steam, ethylene oxide, plasma, formaldehyde.
• Representative model numbers: MSWSC-015200; MSWSC-016120 (Class4); MSWSC-016100 (Class4 & Class6); MSWSC-020140 (Class5); MSWSC-020107 (Class6); MSWSC-016100 (plasma variant).
• Typical color changes: Ethylene Oxide: Red → Blue; Steam: Yellow → Black or Blue → Black; Plasma: Red → Yellow.
• Available sizes: 15×200 mm; 16×100 mm; 16×120 mm; 20×107 mm; 20×140 mm.
• Packaging: typically 250 pieces per box (some examples 200 per box).
• Shelf life: 18 months from manufacture date.
• Storage: store at 5°C–30°C, dry, protected from light and corrosive/acidic/alkaline substances.
• Use limitation: for process indication only; does not measure sterilization efficacy. Stop use if discoloration or anomalies are observed.
• Customization: dimensions and catalog specifications can be adjusted on request.
