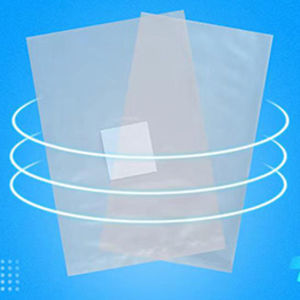

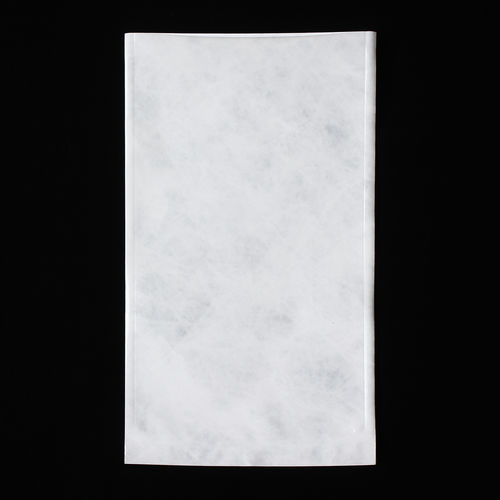

Medical device packaging pouch

Tyvek®

Product name
Tyvek sterilization bags (MSWPP series)

Material
Tyvek 1073B/1059B/2FS (uncoated) + PET/PE medical-grade multilayer film

Category
Medical sterilization bags

Features

• Excellent bacterial barrier and breathability suitable for sterilization processes
• High puncture resistance and waterproof outer film
• Good release performance for easy removal of instruments and implants
• Recommended printing using specially formulated, non-toxic Tyvek inks for optimal print quality

Shelf life
5 years

Sterilization methods
EO, gamma irradiation, plasma, electron beam

Standards
ISO 11607, EN 868, W/T 0698-9

Application scope
Implantable medical devices, surgical products, medical instruments and other single-use medical supplies

Product dimensions
Customizable to meet specific requirements. Catalog dimensions can be adapted according to customer requests.

Models / Sizes / Packaging
Model | Size | Packaging
MSWPP-050160 | 55 mm x 160 mm | 200 items/bag, 20 bags/box
MSWPP-055220 | 55 mm x 220 mm | 200 pieces/bag, 20 bags/carton
MSWPP-055260 | 55 mm x 260 mm | 200 pieces/bag, 20 bags/carton
MSWPP-055290 | 55 mm x 290 mm | 200 pieces/bag, 20 bags/carton
MSWPP-075160 | 75 mm x 160 mm | 200 pieces/bag, 20 bags/carton
MSWPP-075200 | 75 mm x 200 mm | 200 pieces/bag, 20 bags/carton
MSWPP-075230 | 75 mm x 230 mm | 200 pieces/bag, 20 bags/carton
MSWPP-075260 | 75 mm x 260 mm | 200 pieces/bag, 20 bags/carton
MSWPP-075300 | 75 mm x 300 mm | 200 pieces/bag, 20 bags/carton
MSWPP-100200 | 100 mm x 200 mm | 200 pieces/bag, 20 bags/carton
MSWPP-100230 | 100 mm x 230 mm | 200 pieces/bag, 20 bags/carton
MSWPP-100270 | 100 mm x 270 mm | 200 pieces/bag, 20 bags/carton
MSWPP-100300 | 100 mm x 300 mm | 200 pieces/bag, 20 bags/carton
MSWPP-130250 | 130 mm x 250 mm | 200 pieces/bag, 20 bags/carton
MSWPP-150230 | 150 mm x 230 mm | 200 pieces/bag, 15 bags/carton
MSWPP-150260 | 150 mm x 260 mm | 200 pieces/bag, 15 bags/carton
MSWPP-150320 | 150 mm x 320 mm | 200 pieces/bag, 15 bags/carton
MSWPP-200310 | 200 mm x 310 mm | 200 pieces/bag, 10 bags/carton
MSWPP-200350 | 200 mm x 350 mm | 200 pieces/bag, 10 bags/carton
MSWPP-200150 | 200 mm x 450 mm | 200 pieces/bag, 10 bags/carton
MSWPP-300400 | 300 mm x 400 mm | 200 pieces/bag, 10 bags/carton

Technical characteristics / specifications

• Material: Tyvek 1073B/1059B/2FS (uncoated) + PET/PE medical-grade multilayer film
• Breathability: yes (designed for sterilization packaging)
• Bacterial resistance: excellent
• Puncture resistance: excellent
• Waterproof: yes
• Release performance: good (easy removal of items)
• Recommended printing: specially formulated, non-toxic Tyvek ink
• Shelf life: 5 years
• Sterilization compatibility: EO, gamma irradiation, plasma, electron beam
• Standards: ISO 11607, EN 868, W/T 0698-9
• Applications: implantable medical devices, surgical products, medical instruments, other single-use medical supplies
• Dimensions: customizable per customer requirements
• Typical packaging: 200 pieces per bag; carton quantity varies by model (commonly 10–20 bags per carton)
