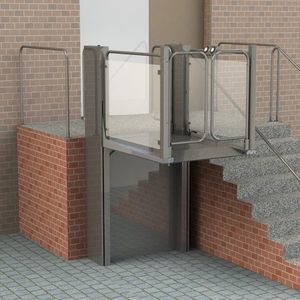

Wheelchair lifting platform MB750

wheelchair lifting platform
wheelchair lifting platform
wheelchair lifting platform
wheelchair lifting platform
wheelchair lifting platform
wheelchair lifting platform
wheelchair lifting platform
Add to favorites
Compare this product


Characteristics

Applications
wheelchair

Description

With the lifts of the MB750-Series you could easily guarantee problem-free access even with small space. Thanks to its space orientated construction the lift can be deployed flexible. The high-grade stainless steel construction sustains wind and weather and is heat-, frost and rainrestistant. Indoors or outdoors: The MB750 guarantees reliable operaility. The lift could be controlled with a hand control unit, a handy radio control or alternatively also comfortable with the smartphone app. The MB750 sets new standards. 690*/750 mm max. lifting height (*when build into pit) Loading capacity 350 kg 60 mm clearance height with ramp or ground level installation Speed approx. 12.5 mm/s Passage width 720 mm Lift width 1010 mm Lift length 1330 mm Straight access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock Radio and Bluetooth control possible Required electrical connection 230V (regular plug) Temperatures from -25°C to +40°C Standard control with wired handheld control unit TECHNICAL DETAILS Loading capacity 350 kg Even heavy electrical wheelchairs can be lifted without strain Usable platform 720 x 1330 mm Wheelchair accessible platform size with enough free space Lifting height up to 690 mm Without being built into a pit even up to 750 mm OPTIONS Sensor buttons High protection against vandalism and a big plus for the comfort while driving Controllable via smartphone app For your Android and iOS device Absolute safety Ramp also works as roll-off protection

VIDEO

Catalogs

MB750
MB750
18 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
