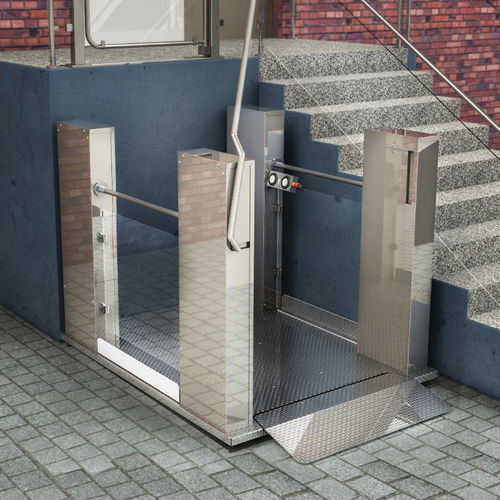

Wheelchair lifting platform MB QUATTRO

WITH LITTLE EFFORT A BARRIER-FREE ACCESS - EVEN WITH HEAVY LOAD. Whether inside or outside: The lift MB Quattro with its high grade materials and its elegant robustness does not only make a good form, but also is absolutely uneffected by rain, snow, cold or heat when placed outside. Thanks to its high loading capacity of up to 500 kg it can facilely carry heavy electrical wheelchairs or E-Scooters and with a maximum lifting height of 1,700*/1,790 mm wheelchair users and companions could easily reach higher levels. Everything with maximum safety and operated with high grade sensor buttons – or of course alternatively with the smartphone app. It couldn‘t be more convenient. MB QUATTRO 1100 1100*/1190 mm max. lifting height (*when build into pit) Loading capacity 500 kg 90 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 1100 mm Lift width 1500 mm Lift length 1870 mm Straight or adjacent access Automatic ramp also protects against rolling off MB QUATTRO 1400 1400*/1490 mm max. lifting height (*when build into pit) Loading capacity 500 kg 90 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 1100 mm Lift width 1500 mm Lift length 1870 mm MB QUATTRO 1700 100*/1790 mm max. lifting height (*when build into pit) Loading capacity 500 kg 90 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 1100 mm Lift width 1500 mm Lift length 1870 mm Straight or adjacent access
