Endoscopy display

operating roomsurgical4K UHD

Overview

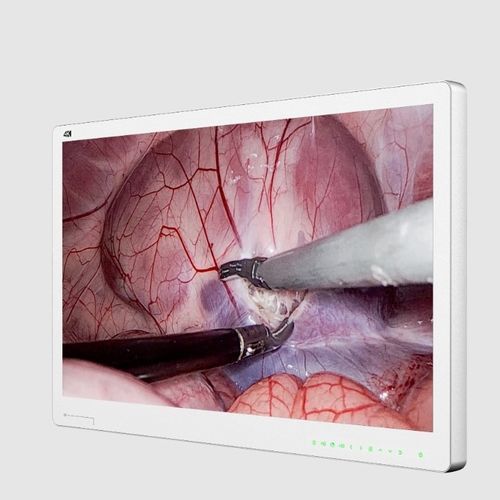

Medical-grade surgical monitor available in 31.5-inch or 27-inch sizes, providing 4K UHD (3840×2160) visualization for operating rooms, endoscopy and minimally invasive procedures. High peak brightness and wide color gamut support clinical image clarity and color accuracy. The front protective cover is designed for routine cleaning and disinfection.

Key features

• 3840 × 2160 resolution for true 4K imaging
• Maximum brightness up to 1000 cd/m² for improved visibility under OR lighting
• Color gamut: 90% NTSC for accurate tissue color rendering
• High-speed inputs: 12G-SDI, 4×3G-SDI and HDMI for compatibility with surgical cameras and imaging systems
• Multi-window display: PIP (Picture-in-Picture) and POP (Picture-out-Picture) to support simultaneous source monitoring
• Front panel protective cover allows easy cleaning and disinfection between procedures
• Designed to meet EMC test standards for medical devices; uses a medical-grade power adapter

Technical specifications

• Display resolution: 3840 × 2160 (4K UHD)
• Available screen sizes: 31.5 inch or 27 inch
• Maximum brightness: 1000 cd/m²
• Color gamut: 90% NTSC
• Input interfaces: 12G-SDI, 4×3G-SDI, HDMI
• Multi-window capability: PIP and POP
• Front panel: protective cover designed for cleaning and disinfection
• Power: requires medical-grade power adapter; conforms to EMC standards for medical devices

Compliance and clinical use

• Meets EMC requirements applicable to medical equipment
• Front protective cover and materials selected for disinfectant compatibility
• Suitable for use in operating theatres, endoscopy suites and other clinical environments requiring high-fidelity visualization
• Supports integration with surgical imaging workflows via multiple SDI/HDMI inputs

Options and ordering

• Available in two display sizes (31.5" / 27") and configurable input sets
• Mounting options and calibration services available on request
• Contact your supplier for medical certification documentation and integration support
