laboratory microscope / for biology / for teaching / multifunctional
SA3300

• Applications:

  laboratory, for biology, for teaching, multifunctional

• Type:

  optical

• Ergonomics:

  compact, binocular, trinocular

• Other characteristics:

  halogen

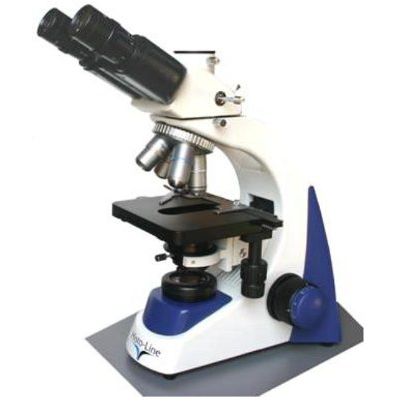

SA-3000 biological microscope is a classical style.
Meantime to ensure the excellent image quality, it was in full of idea of modern designation. Whole body is in fashion style, crisp, clear imaging and compact structure. Standard 10x high-eye point wide field eyepieces are engineered to reduce eyestrain for users wearing glasses. Each eye tube has focusing diopter adjustment to compensate for the nature vision differential between two eyes. Coaxial coarse and fine focus control with low position features perfect human-machine engineering. All optical parts were coated with multi layers in advanced technics: anti-glare, color correction, anti-fungal. Modern, smooth style, sharp, clear imaging and comfort, convenient operation make your viewing comfort in mind.

inocular head (45° ,360° ) with locking screw
Eyepieces: 10x high-eye point, wide field, reticles and pointer available. 16x wide field

Achromatic Objectives: 4x/0.1, 10x/0.25, 40x/0.65, 100x/1.25

Abbe Condenser with variable diaphragm and light filter: NA=1.25

Interpupillary distance adjustment: 52mm-75mm

Built-in graduated mechanical stage:142mm×132mm/55mm×75mm

Nose piece: 4 holes standard

85v-265v universal power supply halogen light source for consistent bright white light, 6v/20w 60Hz light adjustable

Focusing: Extra-large graduated coaxial coarse and fine focus controls
