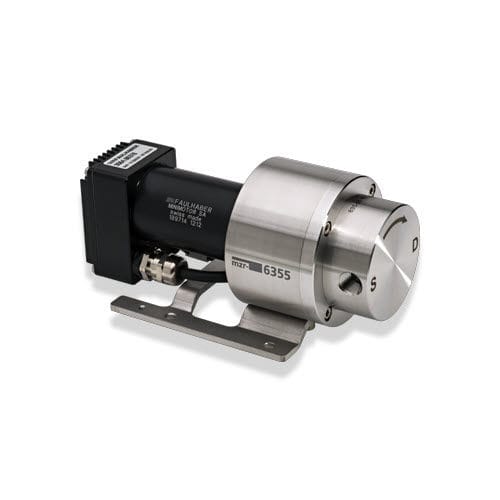

Medical micropump mzr-6355
electricfor liquidscompact

medical micropump
medical micropump
Add to favorites
Compare this product


Characteristics

Applications
medical
Operation
electric
Fluid type
for liquids
Configuration
compact
Flow

Min.: 0.00144 l/h
(0.00038 us gal/h)

Max.: 8.64 l/h
(2.28245 us gal/h)

Power

44 W
(0.06 hp)

Pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Description

The mzr-6355 micro annular gear pump of the hermetic and chemically inert series is, considering its almost universal suitability for aggressive and corrosive liquids, a revolution in the pump technology. Its rotors and functional elements being made of ceramics, the pump shows the highest chemical resistance and an outstanding resistance to wear. Thanks to the use of SSiC (pressureless sintered silicon carbide) as bearing and shaft material, a magnetic coupling, and case components made out of alloy C22 (DIN 2.4602), this pump will take up any challenge in the chemical industry applications. Advantages High resistance to corrosion oxidizing and reducing liquids, acids and bases Long service life wear-resistant ceramic components Hermetically sealed magnetic coupling (NdFeB) Compact, chemically inert pump head 146 mm long, alloy C22, SSiC, Al2O3 and ZrO2-ceramics Precision motor and user-friendly control dynamic DC-servomotor with encoder and microcontroller, RS-232 or CAN-Bus, analog, I/O Precise dosage, low pulsation rotary micro annular gear technology, no valves Applications Mini plant technology Microreaction technology
