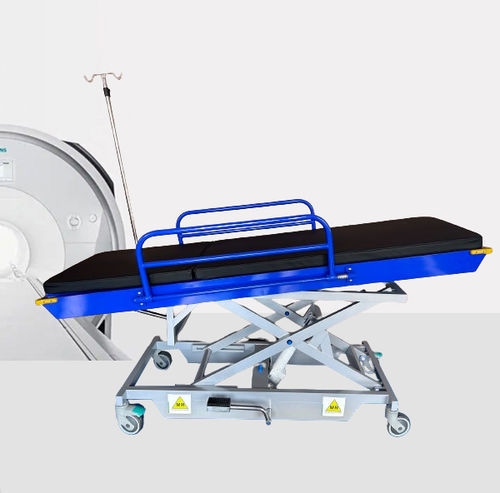

Medical imaging stretcher trolley HO-709

MRIhydraulicwith adjustable backrest

Product description
The MR-safe adjustable-height stretcher HO-709 is fully tested at 5.0 Tesla and designed for use in MR rooms. Trendelenburg is supplied as standard. Foot-operated hydraulic dual-pedal pump allows smooth elevation. Maximum weight capacity: 220 kg (±10 kg).

Features

• Tested for MR safety at 5.0 Tesla.
• Wider bed platform.
• Gas-spring operated Trendelenburg function.
• Increased weight capacity: 220 kg (±10 kg).
• Hydraulic dual-pedal pump for elevation and patient comfort.
• Folding cot sides for patient protection.
• 5 cm high-density, wipe-clean mattress to reduce infection risk.
• Gas-spring adjustable backrest.
• Four non-magnetic castors, diameter 125 mm; two with brake, two without.
• One IV pole included as standard.
• Finished with hard-wearing epoxy powder coating.
• Oxygen cylinder holder available as an option.

Specifications
Max Height: 1020 mm
Min Height: 650 mm
Overall Length: 1900 mm
Overall Width: 690 mm (Bed base: 1900x650 mm)
Weight Capacity: 220 kg (±10 kg).

Technical specifications

• MR safety level: fully tested at 5.0 Tesla.
• Model: HO-709 (hydraulic type).
• Max Height: 1020 mm.
• Min Height: 650 mm.
• Overall Length: 1900 mm.
• Overall Width: 690 mm (Bed base: 1900x650 mm).
• Weight Capacity: 220 kg (±10 kg).
• Trendelenburg: supplied as standard (gas-spring operated).
• Backrest: gas-spring adjustable.
• Elevation system: hydraulic dual-pedal pump.
• Mattress: 5 cm thickness, high-density, wipe-clean material.
• Castors: 4 non-magnetic castors, diameter 125 mm; 2 with brake, 2 without.
• Standard accessories: 1 IV pole; oxygen cylinder holder optional.
• Finish: hard-wearing epoxy powder coating.
