Single use video laryngoscope VL4DEX

with working channelwith blade

Overview

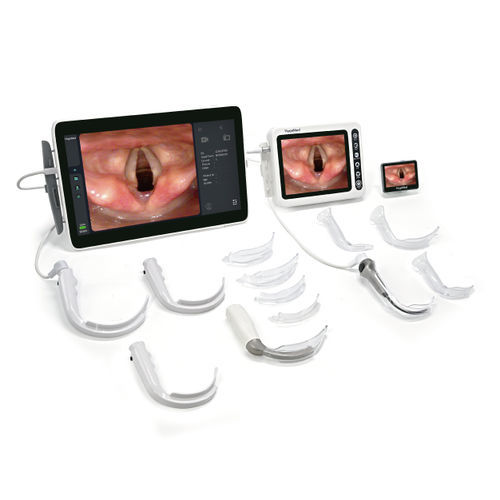

The VL4DEX is a single-use video laryngoscope system designed to provide rapid sterile visual intubation across anaesthesia, emergency and ICU settings. The system includes three processors, two cables, two detachable handle types and three categories of disposable blades. Various combinations allow flexible configuration for clinical workflows and reduced reprocessing time.

Full-Sleeved Blade
Full-sleeved blades are used with Handle-FD1 or Handle-FD2. The sleeve covers most of the handle for improved barrier protection. Handle-FD1 and Handle-FD2 feature high waterproofing and support immersion disinfection.

• Compatible handles: Handle-FD1, Handle-FD2
• Design: sleeve covers most of the handle for enhanced barrier protection
• Disinfection: handles are highly waterproof and immersion-disinfectable
• Blade range: four Macintosh blades and two Miller blades

Integrated Blade
Integrated blades combine handle and blade into a single disposable unit. Each model includes a quick-operation button on the handle to facilitate single-operator use.

• Seven integrated models available
• Each model: integrated handle and blade
• Quick-operation button on the handle

Semi-Sleeved Blade
Semi-sleeved blades pair with Handle-AD and support multiple blade types. Channels on specific blades permit passage of endotracheal tubes, enabling the use of one handle with several blade options for on-site versatility.

• Compatible handle: Handle-AD
• Blade compatibility: 5 Mac-type blades and 3 CMac blades
• Feature: blade channels allow endotracheal tube passage
• Benefit: one handle can be paired with multiple blades for operational flexibility

Components and Clinical Scenarios

• Includes: three processors, two cables, two types of detachable handles, three types of single-use blades
• Primary application scenarios: anaesthesia department, emergency department, intensive care unit (ICU)

Technical specifications

• Product type: Single-use video laryngoscope
• Model name: VL4DEX
• Blade options: full-sleeved blades (Macintosh x4, Miller x2), integrated blades (7 models), semi-sleeved blades (compatible with Mac-type and CMac blades)
• Handles: Handle-FD1, Handle-FD2 (high waterproofing, immersion-disinfectable), Handle-AD (multi-blade compatibility)
• System composition: three processors, two cables
• Clinical use: visual intubation for anaesthesia, emergency and ICU
