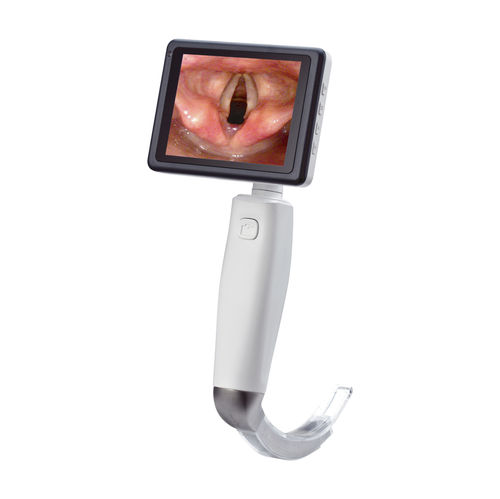

Macintosh laryngoscope blade VL3D/VL4D

plasticdisposablepediatric

Overview
VL3D/VL4D is a single-use blade video laryngoscope compatible with a reusable 3.5/4-inch processor. The system offers eight blade models (five Macintosh, three channeled) and is packaged for immediate use in time-sensitive clinical environments.

Ready to Use
Single-use blades arrive sterile and eliminate waiting for sterilization, reducing turnaround time and minimizing cross-infection risk. Suitable for emergency, anesthesiology, intensive care, pediatrics, operating room and prehospital use.

Comfortable and Efficient Design
The ergonomic handle provides a secure grip; compact construction enables quick assembly and portability. The tiltable and rotatable display plus a multifunction button allow one-touch snapshot and long-press video recording to streamline airway management workflow.

Key Benefits

• 8 blade models: 5 MAC (Macintosh) and 3 CMAC (channeled) to cover routine airway anatomies.
• High-transparency, shatter-resistant polycarbonate blades produced by integrated molding for clear imaging.
• Ergonomic, portable design for rapid deployment.
• Multi-angle observation: display tilts 140° and swivels 180°; anti-fog, high-resolution 2.0 MP camera.
• Quick operation: one-touch photo and long-press video recording.
• Long battery life: 3400 mAh battery providing approximately 120 minutes of continuous operation on full charge.

Features

• Single-use blade system compatible with reusable 3.5/4-inch processor.
• Multifunction button for snapshot and video recording; one-key recording function.
• Ergonomic handle for quick assembly and secure grip.
• High-resolution (2.0 MP) anti-fog camera integrated into blade.
• HD display (3.5/4-inch) with anti-reflective screen; HDMI output for external monitors.
• Sterile packaging for blades to prevent cross-contamination.

Technical specifications

• Model / Series: VL3D/VL4D
• Blade models: 8 total — 5 MAC (Macintosh) series, 3 CMAC (channeled) series
• Processor compatibility: Reusable 3.5/4-inch processor
• Blade material: High-quality polycarbonate, integrated molding
• Display movement: Tilt 140° (up/down) and swivel 180° (left/right)
• Camera: 2.0 MP, high-resolution, anti-fog
• Controls: One-touch snapshot; long press for video recording; one-key recording
• Battery: 3400 mAh, ~120 minutes continuous operation (full charge)
• Packaging: Sterile single-use blade packaging
• Dimensions & weight: Compact design for portability (refer to manufacturer data sheet)
