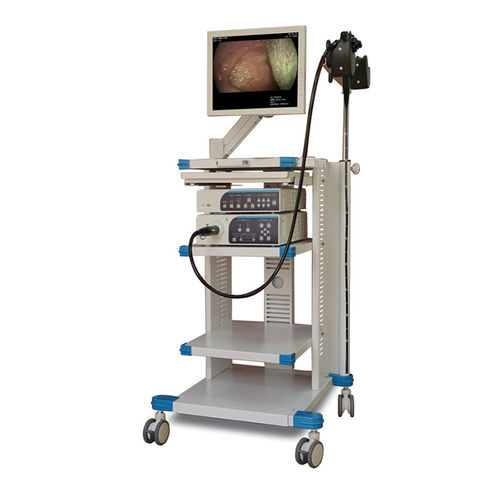

Video colonoscope FD-49S
full HDwith integrated video monitor

video colonoscope
video colonoscope
video colonoscope
video colonoscope
video colonoscope
video colonoscope
video colonoscope
Add to favorites
Compare this product


Characteristics

Type of video endoscope
video colonoscope
Optical
full HD
Options
with integrated video monitor
Working length

1,300 mm, 1,550 mm, 1,650 mm
(51.2 in, 61 in, 65 in)

Total diameter (mm)

12.8 mm
(0.5 in)

Operating channel diameter (mm)

3.7 mm
(0.1 in)

Angle of view (°)

145 °

Direction of view (°)

0 °

Angulation range (°)

160 °, 180 °

Description

Technical parameter: Gastroscope FD-28L Fied of View: 120° Inner Diameter of Instrument Channel: 2.8mm observe depth: 3-100mm Intubation Tube out diameter: 9.3mm effective work length: 1050mm, total length: 1350mm Angulation Range: upward 210°, downward 90°, leftward 100°, rightward 100° Illumination:>15000 lx Resolution:>8.34 lp/mm Colonoscope FD-49S Insertion tube diameter:φ12.8mm Working length:1300/1650mm Working channel:φ3.7mm Tip bending:Up 180°Down 180°Left 160°Right 160° Field angle:120° Depth of view:3-100mm Image definition:720P
