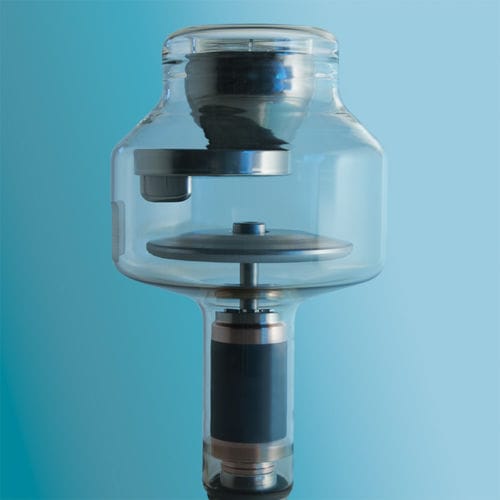

Rotating anode X-ray tube RTM102 series
standard radiography

rotating anode X-ray tube
rotating anode X-ray tube
rotating anode X-ray tube
Add to favorites
Compare this product


Characteristics

Tube type
rotating anode
Applications
standard radiography
Nominal anode input voltage

Min.: 0 W

Max.: 1,000 W

Nominal tube voltage

150 kV

Description

• TZM target with large thermal capacity • Bearing assembly and bearing lubricant system are designed for long life under hardest x-ray operating conditions • Focal track in tungsten-rhenium alloy to prevent cracking • High-thermal emittance oxide coating on anode and rotor provides high anode heat dissipation rate • Severe tests during conditioning assure best performances Specifications Anode angle and diameter 15°- 102 mm Anode heat storage capacity 300 kJ (400 kHU) Rotating anode speed 3000 – 10000 rpm

Catalogs

No catalogs are available for this product.

See all of IAE‘s catalogs
