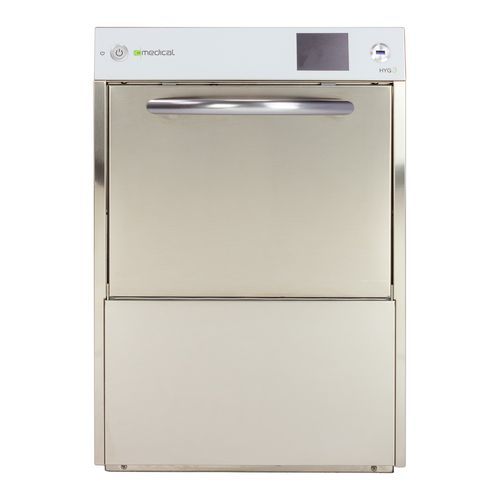

Laboratory washer-disinfector HYG 3

for surgical instrumentsveterinarybenchtop

HYG 3 thermal disinfector – compact washer-disinfector for medical practices, made in Germany
The HYG 3 is IC Medical’s compact washer-disinfector for practices that do not reprocess hollow instruments – ideal for gynecology, dermatology, surgery, podiatry, laboratories and veterinary practices. It cleans and disinfects scissors, forceps, clamps, specula, curettes and burs automatically, in a validatable and documented process.
Key benefits

• Tablet technology instead of liquid chemicals: pre-dosed Oxides Thermo Tabs – no canisters, no dosing errors
• One single program: simple operation, no operating errors
• One loading level, instruments for 10–30 patients per cycle
• Specialty-specific Flexio racks, e.g. holders for up to 24 Cusco specula, 96 standing instruments or 21–42 scissors/forceps
• Thermal disinfection up to 93 °C with A0 value ≥ 3000, designed according to EN ISO 15883
• Cycle time approx. 70 minutes, drying by residual heat (IC HotDrying)
• Delayed start 1–99 hours, batch documentation via USB stick or network
• Small footprint (W 43 × D 50 cm), standard power supply, connections for cold water, demineralized water and drain

Complete package
Fully equipped for your specialty. In Germany delivered incl. water treatment, delivery, installation, training and initial validation by independent accredited partners. For hollow instruments (e.g. dentistry) we recommend the HYG 5. International buyers: please send us your inquiry.
Technical data HYG 3: benchtop version 62.5 × 43 × 50 cm, under-counter version 82 × 43 × 50 cm (H × W × D), wash chamber 21.5 × 34.6 × 40.3 cm, chamber volume 96 L, weight 28 kg, 230 V / 50 Hz / 16 A, sound power approx. 59 dB, internal memory for up to 3,000 cycles, USB and network (RJ45) interfaces, batch release directly on the display, conductivity sensor and spray arm monitoring. Standards: EN ISO 15883-1/2, EN 61010-2-040. Optional base.
Medical device class IIb. Manufacturer: IC Medical GmbH, Rudersberg, Germany – ISO 13485 certified.
