Dental washer-disinfector HYG 5

laboratoryveterinarybenchtop

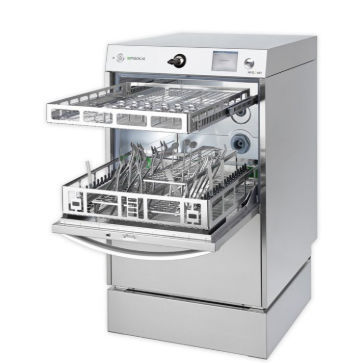

HYG 5 thermal disinfector – washer-disinfector for dental and medical practices, made in Germany
The IC Medical HYG 5 cleans and disinfects your instruments automatically, in a validatable and documented process – including hollow instruments such as handpieces, contra-angles, turbines and suction cannulas. It is the washer-disinfector for dentistry and equally suited to surgery, ENT, gynecology, dermatology, urology (thermostable instruments) and podiatry.
Key benefits

• Tablet technology instead of liquid chemicals: Oxides Thermo Tabs with pre-dosed cleaning components – no canisters, no dosing errors
• One single program: simple operation, no risk of choosing the wrong program
• Two loading levels, upper basket fully extendable (load up to 6 kg)
• Internal rinsing of up to 24 hollow instruments at once with two Flexio square injection rails (12 adapters each)
• Instruments for 20–50 patients, approx. three autoclave loads per cycle
• Thermal disinfection up to 93 °C with A0 value ≥ 3000, designed according to EN ISO 15883
• Cycle time approx. 70 minutes, drying by residual heat (IC HotDrying)
• Delayed start from 1 to 99 hours
• Batch documentation via USB stick or network
• Standard single-phase power supply (separately fused socket); connections for cold water, demineralized water and drain
• Optional HYG 5 AIR version with air nozzle (must be specified when ordering)

Complete package
Fully equipped for your specialty. In Germany delivered as a complete package incl. water treatment, delivery, installation, user training and initial validation by independent accredited partners. International buyers: please send us your inquiry.
Technical data HYG 5: benchtop version 71 × 48.5 × 55 cm, under-counter version 82 × 48.5 × 55 cm (H × W × D), wash chamber 29 × 40 × 42 cm, chamber volume 101 L, weight 30.4 kg, 230 V / 50 Hz / 16 A, sound power approx. 59 dB, internal memory for up to 3,000 cycles, USB and network (RJ45) interfaces, batch release directly on the display, conductivity sensor and spray arm monitoring. Standards: EN ISO 15883-1/2, EN 61010-2-040. Optional base.
Medical device class IIb. Manufacturer: IC Medical GmbH, Rudersberg, Germany – ISO 13485 certified.
