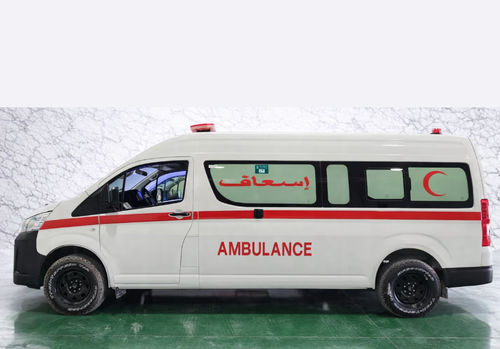

Intensive care ambulance Toyota Hiace

transferfor patient transfervan

Overview
Designed for harsh and remote environments, the Toyota Hiace 4x4 ambulance is a 4x4 medical vehicle built on the Toyota Hiace panel van platform to provide off‑road access and sustained patient transport where infrastructure is limited.

Base Vehicle & Chassis Specifications

• Drivetrain: Selectable four‑wheel‑drive system (2H/4H/4L) for on‑road efficiency and low‑range off‑road capability.
• Engine & Transmission: Turbocharged diesel tuned for high low‑end torque and fuel economy; robust manual transmission standard (alternative powertrains available).
• Suspension: Base suspension evaluated and reinforced in conversion to support the permanent medical module while retaining off‑road ground clearance.
• Thermal Management: Engine cooling and air filtration specified for continuous operation in high ambient temperatures (>40°C) and dust‑prone environments.

Ambulance Conversion & Medical Cell

• Structural Reinforcement: Reinforced frame integrated with vehicle chassis to maintain rigidity and crash safety on uneven terrain.
• Insulation & Climate: Full thermal and acoustic insulation for temperature regulation and reduced noise/vibration during transfers.
• Interior Surfaces: Walls and ceiling lined with smooth, non‑porous medical‑grade composite panels; seamless, chemical‑resistant, anti‑slip flooring for rapid decontamination.
• Corrosion Protection: Underbody and structural components treated with heavy‑duty anti‑corrosion coatings.

Medical Equipment & Electrical Configurations

• BLS Configuration: Certified height‑adjustable wheeled stretcher, fixed high‑capacity oxygen cylinder with regulators, electric suction unit, and shock‑mounted locking cabinets for trauma kits.
• ALS Optional Upgrade: Pre‑wired infrastructure for patient monitors/defibrillators, expanded medical gas systems, and increased electrical capacity for ventilators.
• Dual Battery System: Isolated dual‑battery arrangement: primary for engine start and deep‑cycle secondary bank for medical equipment and interior LED systems via a pure sine wave inverter.
• External Power: Standard external 220 V AC inlet to power medical systems from grid or generator when stationary.

Key Features

• Vehicle Brand: Toyota
• Ambulance Types available: a - patient transport; b - emergency; c - ICU / ALS
• Drive Type: 4x4 (selectable 2H/4H/4L)
• Powertrain / Fuel Type: diesel (standard); petrol or fully electric options available
• Standards: Compliant with EN 1789 (as indicated)

Technical Specifications (highlights)

• Vehicle Brand: Toyota
• Ambulance Type: A - patient transport; B - emergency; C - ICU / ALS
• Drive Type: 4x4 (selectable 2H/4H/4L)
• Fuel Types: diesel; fully electric; petrol
• Conversion highlights: reinforced frame integrated to chassis; full thermal and acoustic insulation; medical‑grade composite interior panels; seamless chemical‑resistant anti‑slip flooring; heavy‑duty anti‑corrosion underbody treatment
• Electrical: dual battery system with pure sine wave inverter; external 220 V AC inlet; pre‑wired ALS upgrade capability
