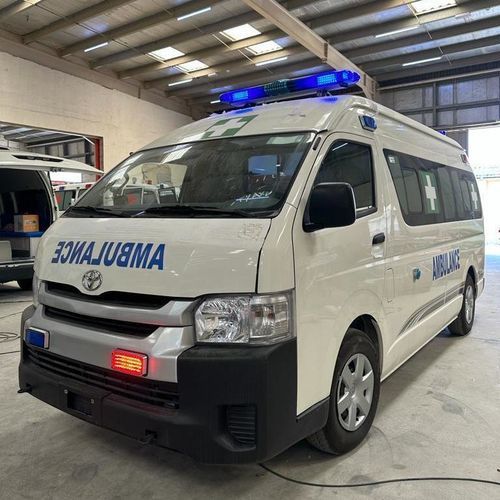

Intensive care ambulance Toyota Hiace 200

for ambulancesparamedicvan

Overview
The Toyota Hiace Ambulance (Hiace 200, Old Shape) is based on the H200 platform (2005–2018). It is a widely used, easy-to-maintain ambulance chassis offering high parts availability and adaptable interior layouts for basic patient transport through advanced life support roles. Suitable for hospitals, EMS providers, NGOs and governmental fleets.

Chassis design & specifications

• Platform: Toyota Hiace H200 (2005–2018).
• Engine options: 2.5L turbo diesel (2KD-FTV), 2.7L petrol (2TR-FE), 3.0L diesel (1KD-FTV).
• Transmissions: 5-speed manual or 4-speed automatic.
• Drive and capability: standard Rear-Wheel Drive; 4x4 conversions available via specialist kits.
• Suspension & payload: front wishbone / rear leaf spring suspension; payload up to 1,400 kg depending on configuration.
• Body variants: long body and super long body; standard roof or high roof options.

Interior configuration & equipment options

• BLS configuration: manual stretcher system, medical oxygen cylinder with regulator, basic trauma kits, foldable attendant seat, ABS/PVC interior panels for easy cleaning.
• ALS configuration: integrated oxygen systems, suction provision, defibrillator mounting points, lockable medication cabinets, dedicated inverter (1500–2000 W) for medical devices.
• Comfort & safety: waterproof vinyl flooring, antibacterial finishes, dedicated rear AC options, LED overhead and spot lighting.

Off-road upgrades & export support

• 4x4 conversions: part-time or full-time 4WD kits including transfer cases and front axles for diesel and petrol models.
• Suspension lifts: lift kits from 2" to 4" to increase ground clearance for demanding terrain.
• Export services: export logistics, international shipping options (CIF/FOB/DDP), multilingual manuals and compliance documentation for WHO/NGO deployments.

Certifications & standards
Designed and supplied to support compliance with recognized ambulance standards. Referenced certifications include EN 1789 and ISO 9001 where applicable.

Technical specifications
Vehicle Brand: Toyota
Ambulance types: a - patient transport; b - emergency; c - icu / als
Drive type: RWD standard; 4x4 conversion option
Fuel / powertrain: diesel, petrol
Roof type: high roof, standard roof

Key technical details

• Model designation: Hiace 200 (Old Shape)
• Engine list: 2.5L turbo diesel (2KD-FTV); 2.7L petrol (2TR-FE); 3.0L diesel (1KD-FTV)
• Transmission options: 5-speed manual; 4-speed automatic
• Payload capacity: up to 1,400 kg (dependent on specification)
• Interior packages: BLS and ALS fit-outs available
• Electrical: inverter 1500–2000 W options for medical equipment
• Interior finishes: ABS/PVC wall panels, waterproof vinyl flooring, LED lighting
• Off-road kits: 4WD kits, transfer cases, front axles, 2"–4" lift kits
• Standards: EN 1789; ISO 9001 (where applicable)
