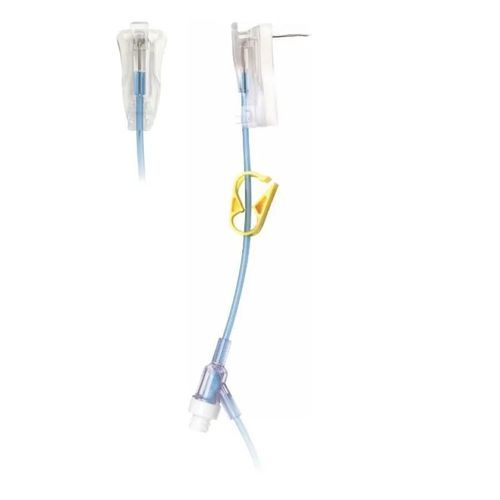

Implantable port injection needle Gripper Plus™

Hubersafety19G

Product overview
The Gripper Plus™ Power P.A.C. safety Huber port access needle is a power-rated port access needle designed for power injection and routine port access. It features a thick cushioned needle platform for patient comfort, a removable contoured grip for controlled insertion, clear blue tubing on the extension set for easy differentiation from non-power needles and a safety mechanism that locks on needle removal with an audible click and visible engagement. Available in multiple gauges and lengths, with or without a needlefree Y-site extension set.

Ordering information / Technical variants
Gripper Plus Power P.A.C. Safety Huber Needle – Needlefree Y-site
Maximum flow rate: 5 mL/sec
Reorder Code | Gauge | Length (mm)
21-3464-24 | 20 | 16 mm
21-3465-24 | 20 | 19 mm
21-3466-24 | 20 | 25 mm
21-3467-24 | 20 | 32 mm
21-3468-24 | 19 | 19 mm
21-3469-24 | 19 | 25 mm
21-3470-24 | 19 | 32 mm

Gripper Plus Power P.A.C. Safety Huber Needle – Without Y-site
Maximum flow rate: 5 mL/sec
Reorder Code | Gauge | Length (mm)
21-3362-24 | 20 | 25 mm
21-3363-24 | 20 | 32 mm
21-3367-24 | 20 | 19 mm
21-3369-24 | 20 | 16 mm
21-3364-24 | 19 | 25 mm
21-3365-24 | 19 | 32 mm
21-3368-24 | 19 | 19 mm

Product benefits

• Removable contoured grip for controlled and precise insertion
• Safety mechanism activated on needle removal — audible click and visible confirmation when safety arm locks
• Thick cushioned needle platform to support patient comfort when in situ
• Non-siliconized, non-coring (non-stanzer) Huber needle
• Approx. 20 cm extension set available with or without luer-activated needlefree Y-site
• Clear blue tubing on extension set differentiates power-rated needles from non-power needles
• Color-coded clamp(s)
• Power injection capability up to 5 mL/sec and pressure up to 300 psi
• Positive ANTT® (Aseptic Non Touch Technique) evaluation

Product literature (titles)

• Catalog — Ports And Port Access Needles Product Catalogue
• Document — BJN: Port and Needle Guide
• Document — BJN: Port and Needle Supplement

Specifications / technical details

• Brand: ICU Medical
• Model series: Gripper Plus™ Power P.A.C.
• Device type: Safety Huber needle — power-rated for power injection
• Available gauges: 19 and 20 (see reorder codes for lengths)
• Available needle lengths: 16 mm, 19 mm, 25 mm, 32 mm (varies by SKU)
• Extension set length: approx. 20 cm (with or without Y-site)
• Maximum flow rate for power injection: up to 5 mL/sec
• Maximum pressure for power injection: up to 300 psi
• Needle type: non-siliconized, non-coring
• Safety mechanism: locks on removal with audible click and visible engagement
• Box quantity: 12
• ANTT® evaluation: Positive ANTT® evaluation
