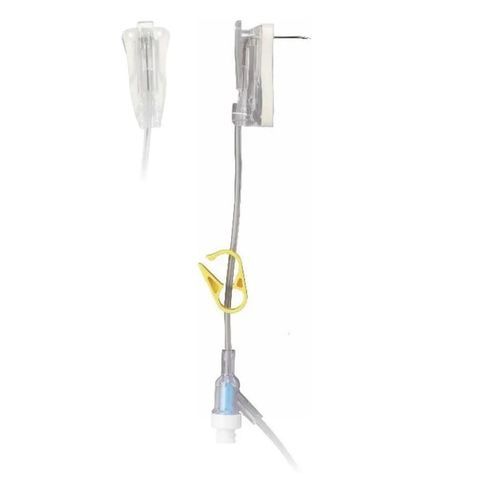

Implantable port injection needle Gripper Plus™

Hubersafety19G

Product overview
Gripper Plus™ safety Huber port access needle for repeated access to implanted ports for infusion, chemotherapy and blood sampling. Features a thick cushioned needle platform and a removable contoured grip for controlled insertion. The safety mechanism activates with an audible click and provides visible engagement confirmation on needle removal. Available with or without Y-site and in multiple gauges and lengths; 20 cm extension set options available.

Clinical use
Intended for use by healthcare professionals for accessing implantable venous ports for infusion therapy, chemotherapy administration and intermittent blood sampling in hospital and outpatient settings.

Key features

• Safety mechanism that locks on needle removal — audible click and visible confirmation when safety arm engages
• Thick cushioned needle platform designed to sit against the skin to improve patient comfort
• Removable contoured grip to assist controlled insertion
• Non-siliconised, non-coring Huber needle
• 20 cm extension set option available with or without Y-site; removable injection cap on luer lock or needlefree Y-site luer‑activated injection site
• Extension set supplied with colour-coded clamp(s)
• Positive ANTT® (Aseptic Non Touch Technique) evaluation

Ordering information

• Box quantity: 12

Specifications / Ordering tables
Needlefree Y-Site Luer-Activated Needlefree Injection Site
Reorder Code | Gauge | Length (in/mm)
21-2960-24 | 22 | 5/8 in / 16 mm
21-2961-24 | 22 | 3/4 in / 19 mm
21-2962-24 | 22 | 1 in / 25 mm
21-2963-24 | 22 | 1¼ in / 32 mm
21-2964-24 | 20 | 5/8 in / 16 mm
21-2965-24 | 20 | 3/4 in / 19 mm
21-2966-24 | 20 | 1 in / 25 mm
21-2967-24 | 20 | 1¼ in / 32 mm
21-2968-24 | 19 | 3/4 in / 19 mm
21-2969-24 | 19 | 1 in / 25 mm
21-2970-24 | 19 | 1¼ in / 32 mm

Without Y-Site
Reorder Code | Gauge | Length (in/mm)
21-2760-24 | 22 | 1 in / 25 mm
21-2761-24 | 22 | 1¼ in / 32 mm
21-2766-24 | 22 | 3/4 in / 19 mm
21-2770-24 | 22 | 5/8 in / 16 mm
21-2767-24 | 20 | 3/4 in / 19 mm
21-2762-24 | 20 | 1 in / 25 mm
21-2763-24 | 20 | 1¼ in / 32 mm
21-2769-24 | 20 | 5/8 in / 16 mm
21-2764-24 | 19 | 1 in / 25 mm
21-2765-24 | 19 | 1¼ in / 32 mm
21-2768-24 | 19 | 3/4 in / 19 mm

Y-Site Removable Split Septum Injection Cap on Luer Lock Y-Site
Reorder Code | Gauge | Length (in/mm)
21-2860-24 | 22 | 5/8 in / 16 mm
21-2861-24 | 22 | 3/4 in / 19 mm
21-2862-24 | 22 | 1 in / 25 mm
21-2863-24 | 22 | 1¼ in / 32 mm
21-2864-24 | 20 | 5/8 in / 16 mm
21-2865-24 | 20 | 3/4 in / 19 mm
21-2866-24 | 20 | 1 in / 25 mm
21-2867-24 | 20 | 1¼ in / 32 mm
21-2868-24 | 19 | 3/4 in / 19 mm
21-2869-24 | 19 | 1 in / 25 mm
21-2870-24 | 19 | 1¼ in / 32 mm

Product literature & resources

• Ports and Port Access Needleless Product Catalog
• Port Access Needleless Sell Sheet
• Gripper Plus Sell Sheet
• Gripper Plus Needle Selection – Quick Reference Guide
• Understanding an Implantable Port (PDF)
• BJN: Port and Needle Guide (PDF)
• BJN: Port and Needle Supplement (PDF)

Technical specifications

• Product type: Safety Huber (port access) needle — Gripper Plus™
• Comfort: Thick cushioned needle platform
• Insertion aid: Removable contoured grip
• Needle: Non-siliconised, non-coring
• Safety activation: Audible click with visible engagement confirmation
• Configurations: With or without Y-site; gauges: 19G, 20G, 22G; lengths: 5/8 in (16 mm) to 1¼ in (32 mm)
• Extension set: 20 cm option; removable injection cap on luer lock or luer‑activated needlefree Y-site
• Packaging: Box quantity = 12
• Evaluation: Positive ANTT® (Aseptic Non Touch Technique) evaluation
