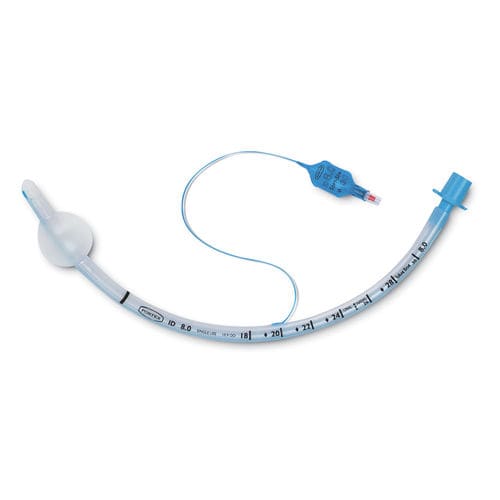

Oral and nasal endotracheal tube SOFT-SEAL

10 per boxdisposable

Overview
The Portex™ tracheal tube features a Profile SOFT‑SEAL™ high‑volume, low‑pressure cuff made from soft, thermosensitive PVC to reduce trauma risk and conform to tracheal anatomy.

Ordering Information
Box quantity: 10
Shelf life: 5 years

Product Benefits

• Clear Polyvinyl Chloride (PVC) construction.
• Thermosensitive cuff material minimises pressure on the tracheal wall.
• Radiopaque blue line for X‑ray visualisation.
• High‑volume, low‑pressure Profile SOFT‑SEAL™ cuff.
• Printed pilot balloon indicating internal diameter (ID).
• Standard 15 mm ISO connector for anaesthetic and ventilator circuits.
• Murphy eye and Magill curve to assist placement.
• Sterile, single‑use device.

Specifications / Ordering Information (table)
Reorder Code | ID (mm) | OD (mm) | Length (mm) | Cuff Rest | Units per Case
100/199/050 | 5.0mm | 6.9mm | 250mm | 17 | 20
100/199/055 | 5.5mm | 7.6mm | 280mm | 17 | 20
100/199/060 | 6.0mm | 8.2mm | 290mm | 23 | 20
100/199/065 | 6.5mm | 8.9mm | 300mm | 23 | 20
100/199/070 | 7.0mm | 9.6mm | 310mm | 30 | 20
100/199/075 | 7.5mm | 10.3mm | 320mm | 30 | 20
100/199/080 | 8.0mm | 10.9mm | 330mm | 30 | 20
100/199/085 | 8.5mm | 11.6mm | 330mm | 30 | 20
100/199/090 | 9.0mm | 12.3mm | 330mm | 30 | 20
100/199/095 | 9.5mm | 13.0mm | 330mm | 30 | 20
100/199/100 | 10.0mm | 13.7mm | 330mm | 34 | 20

Notes
All cuffed tracheal tubes come with a standard 15 mm ISO connector.

Characteristics / Technical specifications

• Brand: Portex™.
• Material: Clear PVC (thermosensitive).
• Cuff: Profile SOFT‑SEAL™ (high volume, low pressure).
• Features: Radiopaque blue line; printed pilot balloon; Murphy eye; Magill curve; 15 mm ISO connector.
• Packaging: Sterile, single‑use; box quantity 10; shelf life 5 years.
• Sizes: ID 5.0 mm to 10.0 mm (see table for reorder codes, OD, lengths, cuff rest and units per case).
